MQTT requests

An MQTT request is a client for an MQTT broker: it connects, subscribes to topics, publishes messages and logs everything that arrives. Use it to watch what IoT devices and backend services publish, to send a test command to a device, or to check a broker’s behavior in the collection runner. Cloak Proxy supports MQTT 3.1.1 and MQTT 5.0, over plain TCP, TLS, and WebSockets.

Connect, subscribe and publish

1. In the API client, click New › Other Protocols › MQTT, or right-click a collection and choose Add Other Request › MQTT. Search Everything (⇧ ⌘ A) also has New MQTT Request.

   The new request points at the public test broker mqtt://test.mosquitto.org:1883, subscribes to cloak/test/# and publishes to cloak/test/hello.

2. Type your broker’s URL, for example mqtts://broker.example.com:8883.

3. If the broker needs credentials, fill in Authorization. Choose the MQTT version in Settings.

4. In Topics, list the topic filters you want to receive.

5. Press ⌘ ↩ or click Connect. Cloak Proxy connects and subscribes to every topic in the list.

6. In Publish, enter a topic and payload, then press ⌘ ⇧ ↩ or click Publish.

7. Click Disconnect when you’re done.

123456

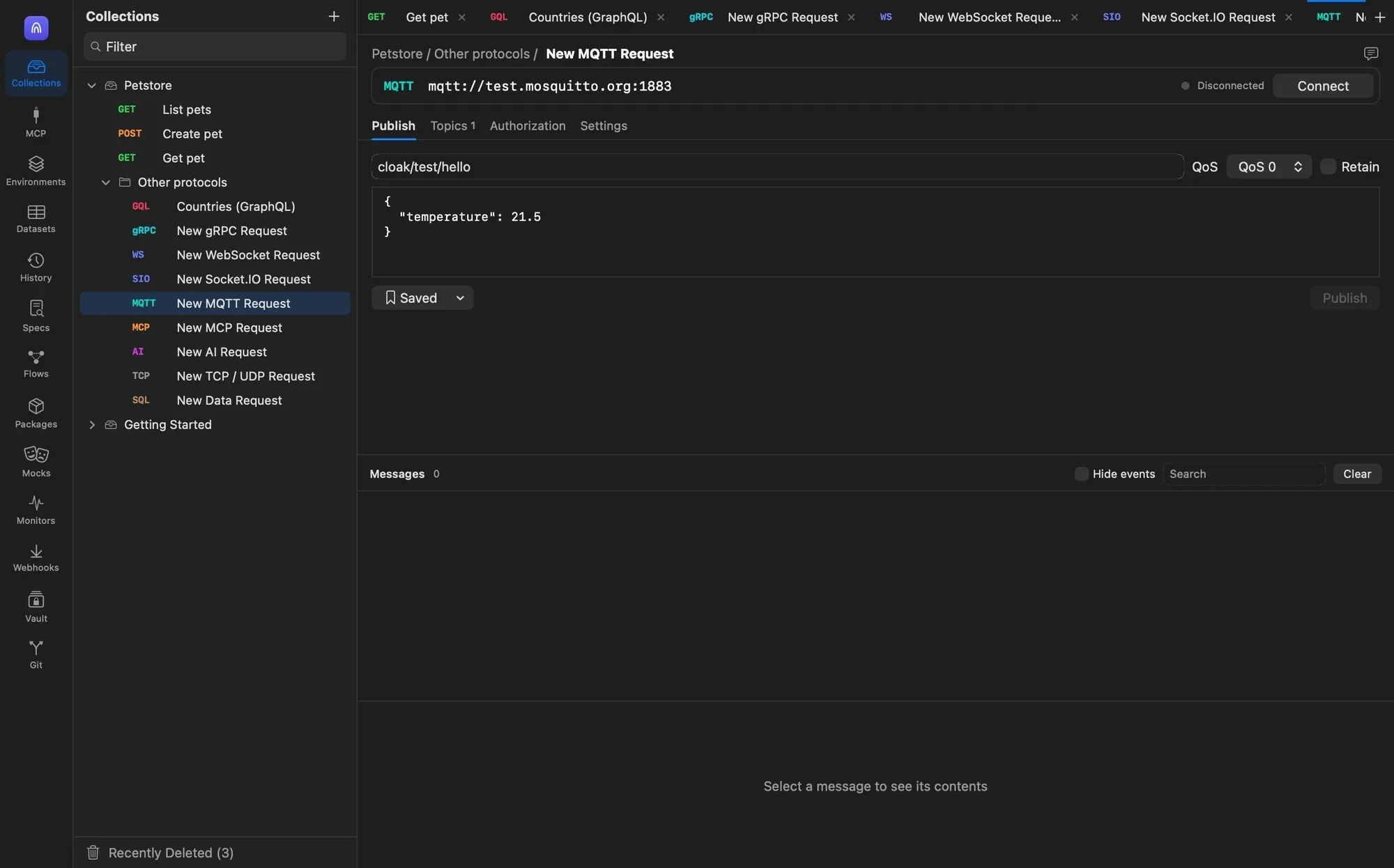

The Publish tab of a new MQTT request.

1. Broker URL: the scheme picks TCP, TLS or WebSocket
2. Topics to subscribe to
3. Settings: version, keep alive, clean start, last will
4. Topic to publish to
5. QoS and Retain for the published message
6. Publish (⌘⇧↩)

×

Broker URL

The URL’s scheme picks the transport:

Scheme	Transport	Default port
mqtt:// (or no scheme)	TCP	1883
mqtts://, ssl:// or tls://	TLS	8883
ws://	MQTT over WebSocket	80
wss://	MQTT over secure WebSocket	443

TCP

mqtt://broker.example.com:1883

TLS

mqtts://broker.example.com:8883

WebSocket

wss://broker.example.com/mqtt

For WebSocket brokers the URL’s path is the WebSocket endpoint, for example wss://broker.example.com/mqtt; without a path, /mqtt is used. {{variables}} work in the URL. MQTT connections go straight to the broker, not through Cloak Proxy.

Request tabs

Publish

Field	Default	What it does
Topic	cloak/test/hello	The topic to publish to.
QoS	QoS 0	QoS 0 (at most once), QoS 1 (at least once) or QoS 2 (exactly once).
Retain	Off	Asks the broker to keep the message and deliver it to future subscribers of the topic.
Payload editor	A JSON sample	The message body, sent as UTF-8 text. {{variables}} are filled in.
Saved		Save Current Message keeps the payload; choose a saved one to load it, or remove it with Delete.

Publish is enabled only while connected.

Topics

Each row is a topic filter with its own QoS. + matches exactly one level and # matches the rest, so sensors/+/temperature matches sensors/kitchen/temperature, and sensors/# matches everything under sensors/.

Control	What it does
Topic field	The filter, such as devices/#.
QoS menu	The maximum QoS you want to receive at, QoS 0 to QoS 2.
Subscribe / Unsubscribe	Subscribes or unsubscribes this row right away. Subscribe works only while connected.
Remove button	Deletes the row.
Add Topic	Adds an empty row.

Every non-empty row is subscribed automatically when you connect. The tab’s badge counts the rows.

Authorization

Field	Default	What it does
Client ID	cloak- and six random characters	Identifies this client to the broker. Two clients with the same ID kick each other off.
Username	Empty	Sent when not empty. {{variables}} work.
Password (supports {{vault:name}})	Empty	Sent when not empty. The field is masked.

Settings

Setting	Default	What it does
Version	MQTT 3.1.1	MQTT 3.1.1 or MQTT 5.0.
Keep alive	60 s	The keep-alive interval sent to the broker, 0 to 3,600 seconds in steps of 10. Cloak Proxy pings the broker so the connection never stays silent longer than this. 0 turns keep alive off. With MQTT 5.0 the broker can ask for a different interval, which wins.
Clean session (3.1.1) / Clean start (5.0)	On	Starts with a fresh session. Off, the broker resumes your earlier session and its subscriptions, and the log shows session present.
Skip TLS certificate verification	Off	Accepts any certificate on TLS and wss:// connections, for development brokers.
Last will topic	Empty	When set, the broker publishes the last will message to this topic if the client disconnects without saying goodbye.
Last will message	Empty	The last will payload.

Read the Messages log

Entry	Meaning
Connecting to host:port	The connection started.
Connected	The broker accepted the connection, with session present if it resumed a session.
Subscribed / Unsubscribed	The broker’s answer to a subscribe, with the QoS it granted, or the topics you left.
topic · QoS 1 · retained, incoming	A message from the broker. retained means the broker stored it earlier.
topic · QoS 0 · retain, outgoing	A message you published.
Pong after 35 ms	A keep-alive ping was answered.
Disconnected / Error	The connection ended or failed, with the reason.

Select a message to see its payload below: JSON as a tree, text as text, and binary payloads as a hex dump. Hide events hides informational entries, the search field filters by topic and payload, and Clear empties the log.

Run MQTT requests in the collection runner

The collection runner and cloakctl run a saved MQTT request in one step:

1. Connect with the saved version, credentials, keep alive and last will. Each run uses the saved client ID plus -run- and four random characters, with a clean session, so parallel runs and the editor’s own connection don’t disconnect each other.
2. Subscribe to every topic in Topics.
3. Publish the Publish payload to its topic with its QoS and retain flag, unless the topic is empty.
4. Collect incoming messages until none has arrived for half a second, or until the request timeout (30 seconds by default) if none arrive.
5. Disconnect.

The response is 200 OK with Content-Type: application/json, an x-messages-received header, and a body that’s a JSON array with one object per message:

Response body

[
  {
    "topic": "cloak/test/hello",
    "payload": { "temperature": 21.5 },
    "qos": 0,
    "retain": false
  }
]

A payload that parses as JSON is included as JSON, other text as a string, and binary data as base64. If you subscribe to the topic you publish to, your own message comes back too, which makes a quick round-trip test.

MQTT requests have no Scripts tab of their own. Put tests in the collection’s or a folder’s post-response script, and check pm.info.requestName for tests meant for one request:

Collection post-response script

if (pm.info.requestName === "Thermostat round trip") {
  pm.test("message came back", () => {
    const messages = pm.response.json();
    pm.expect(messages.length).to.be.above(0);
    pm.expect(messages[0].payload.temperature).to.be.a("number");
  });
}

Broker credentials

The username, password and payloads are saved with the request in your workspace files. Store the password in the vault and type {{vault:mqtt_password}} in the field, so it stays in your Keychain and out of Git and exports. Public test brokers such as test.mosquitto.org are readable by anyone: never publish real data to them.
