Flutter

Dart’s HttpClient ignores the system proxy on every platform, so a Flutter app’s requests never reach Cloak Proxy on their own, even with the Wi-Fi proxy or macOS capture on. Cloak Proxy gives you a small Dart file that, in debug builds only, sends HttpClient traffic to the proxy and trusts the Cloak Proxy certificate. The certificate is in the file, so you don’t install anything on the device or simulator.

12

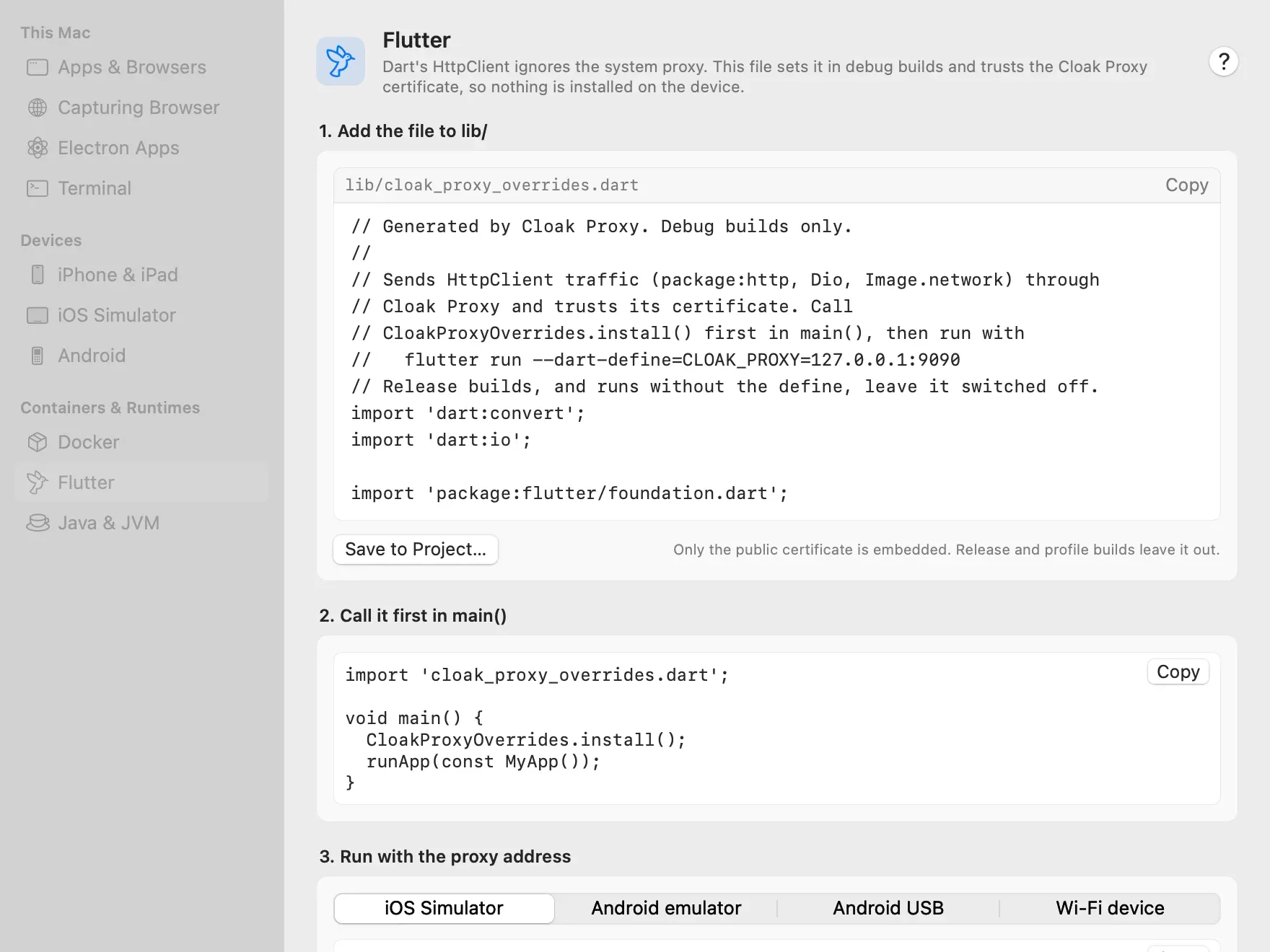

The Flutter page: the file, the call in main(), and the run command.

1. Writes the file into your project
2. Where the app runs

×

Add the file

1. Open Proxy › Device & Runtime Setup… and choose Flutter.

2. Click Save to Project… and pick your Flutter project (the folder with pubspec.yaml). Cloak Proxy writes lib/cloak_proxy_overrides.dart.

   Or click Copy and save it yourself.

Call it from main()

Add the import and call install() before anything makes a request:

lib/main.dart

import 'cloak_proxy_overrides.dart';

void main() {
  CloakProxyOverrides.install();
  runApp(const MyApp());
}

Run with the proxy address

install() does nothing unless the run passes the proxy’s address with --dart-define. Pick where the app runs on the page to get the command:

iOS Simulator or macOS

Terminal

flutter run --dart-define=CLOAK_PROXY=127.0.0.1:9090

The simulator shares the Mac’s network, so 127.0.0.1 is the Mac.

Android emulator

Terminal

flutter run --dart-define=CLOAK_PROXY=10.0.2.2:9090

The emulator reaches the Mac at 10.0.2.2.

Android over USB

Terminal

adb reverse tcp:9090 tcp:9090
flutter run --dart-define=CLOAK_PROXY=127.0.0.1:9090

adb reverse makes 127.0.0.1 on the device reach the Mac. Connect Proxy on the Android page runs it for you.

Phone on Wi-Fi

Terminal

flutter run --dart-define=CLOAK_PROXY=192.168.1.20:9090

Use your Mac’s address on the network, and turn on Settings › Network › Allow other devices to connect.

In VS Code or Android Studio, add --dart-define=CLOAK_PROXY=… to the launch configuration’s arguments. The debug console prints Cloak Proxy: HttpClient traffic goes through … when it’s on.

What it covers

The file installs an HttpOverrides that, for every HttpClient the app creates:

• sends requests to the proxy with findProxy;
• trusts the Cloak Proxy certificate with SecurityContext.setTrustedCertificatesBytes, on top of the usual roots. Certificates are still checked: only ones Cloak Proxy issued, or ones the system already trusts, are accepted.

That covers package:http, Dio, Image.network, NetworkImage and anything else built on dart:io’s HttpClient.

Build	What happens
Debug, with --dart-define=CLOAK_PROXY	Traffic goes through Cloak Proxy
Debug, without the define	Nothing changes
Profile and release	Nothing changes: kDebugMode is false, so the code is compiled out

Only Cloak Proxy’s public certificate is in the file. It’s safe to commit; the comment at the top shows its SHA-256 fingerprint, which you can compare with Settings › Certificate. If you regenerate the certificate, save the file again.

From MCP and the command line

capture_config with kind: "flutter" returns the file and the run command for device (ios_simulator, android_emulator, android_usb or device); with project and write: true it writes the file. capture_setup with target: "flutter" and apply: "flutter-snippet" does the same as a setup step.

Terminal

cloakctl capture-config flutter --project ~/code/shop_app --write
cloakctl capture-config flutter --device android_emulator

Limits

• cupertino_http and cronet_http use the platform’s own networking instead of HttpClient. They follow the device’s proxy and trust store like a native app: see iOS Simulator or Android.
• WebSockets made with WebSocket.connect use HttpClient and are covered; web_socket_channel on the web isn’t, as Flutter web runs in the browser (use a capturing browser).
• gRPC through grpc-dart opens its own HTTP/2 connections and ignores HttpOverrides.
