WebSocket requests

A WebSocket request opens a live, two-way connection to a ws:// or wss:// server. Once connected, you send text or binary messages and watch everything the server sends back in a timestamped log. Use it to try a realtime API by hand, to reproduce a bug in a chat or notification service, or, saved in a collection, to check a server’s reply in the collection runner.

Connect and send messages

1. In the API client, click New › Other Protocols › WebSocket, or right-click a collection and choose Add Other Request › WebSocket. Search Everything (⇧ ⌘ A) also has New WebSocket Request.

   The new request points at a public echo server, wss://echo.websocket.org.

2. Type the server’s URL, for example wss://api.example.com/socket. Include the scheme: ws:// for plain connections, wss:// for TLS.

3. Add any handshake headers in Headers, and subprotocols in Settings.

4. Press ⌘ ↩ or click Connect. The dot next to the button turns green and the status reads Connected.

5. Write a message in Message and press ⌘ ⇧ ↩ or click Send.

6. Click Disconnect when you’re done.

123456

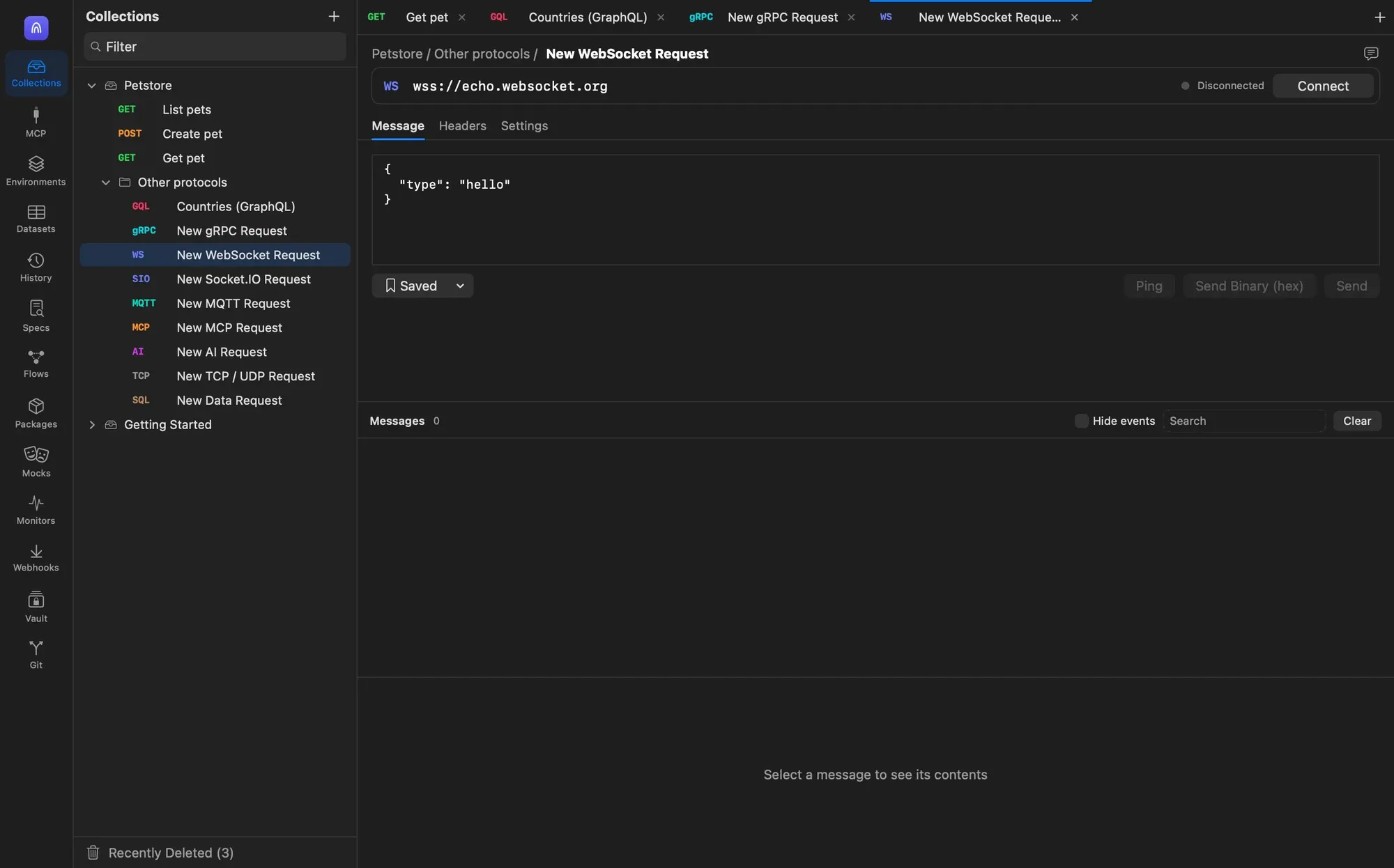

A WebSocket request before connecting.

1. Server URL (ws:// or wss://)
2. Connect (⌘↩) and the connection status
3. Headers and Settings for the handshake
4. Saved messages
5. Ping, Send Binary (hex) and Send (⌘⇧↩)
6. Messages log

×

The connection belongs to the request, not the tab: switching to another request and back keeps it open.

Request tabs

Tab	Field	What it does
Message	Editor	The message to send. {{variables}} are filled in when you send.
Message	Saved	Save Current Message keeps the editor’s text, named after its first 30 characters. Choose a saved message to load it, or remove one with Delete.
Headers	Key/value table	Extra headers for the opening HTTP handshake, such as Authorization or Cookie. Keys and values can use {{variables}}.
Settings	Subprotocols (comma separated)	Values for Sec-WebSocket-Protocol, for example graphql-transport-ws, json. The server’s choice appears in the Connected log entry.
Settings	Skip TLS certificate verification	Accepts any certificate on wss:// connections, for development servers.

{{variables}} also work in the URL.

Send text, binary and ping frames

All three buttons are enabled only while connected.

Button	Sends
Send	The editor’s text as a text frame.
Send Binary (hex)	The editor’s text read as hex bytes (for example de ad be ef, 0xdeadbeef or de:ad:be:ef) as a binary frame.
Ping	A ping frame. The log shows Pong after 12.3 ms when the server answers.

Text

Message, sent with Send

{ "type": "subscribe", "channel": "orders", "token": "{{token}}" }

Binary (hex)

Message, sent with Send Binary (hex)

81 a4 74 79 70 65 a4 70 69 6e 67

Cloak Proxy answers the server’s pings automatically, and accepts messages up to 16 MB.

Read the Messages log

Each event of the connection is an entry with a time down to the millisecond:

Entry	Meaning
Connecting to …	The handshake started.
Connected · 101 · subprotocol · 85 ms	The handshake succeeded. Select it to see the server’s handshake headers.
Sent / Received	A text message, outgoing (blue arrow) or incoming (green arrow).
Binary 128 bytes	A binary message.
Ping / Pong	Control frames.
Close frame	The close frame with its code and reason.
Disconnected (1000) by you	The connection closed. “by you” means you clicked Disconnect.
Error / Couldn’t connect	A failure, with the reason.

Select an entry to see its content below the list: JSON as a collapsible tree, text as text, and binary as a hex dump. Hide events hides informational entries such as connects and pings, the search field filters by title and content, and Clear empties the log. The log keeps the last 5,000 entries.

Run WebSocket requests in the collection runner

The collection runner and cloakctl run a saved WebSocket request in one step: connect, send the Message once as a text frame (nothing is sent if it’s empty), collect what comes back, and disconnect. Collecting stops when no new message has arrived for half a second, when the server closes the connection, or after the request timeout (30 seconds by default) if nothing arrives at all.

The result is turned into an HTTP-style response so tests can check it:

Response part	Value
Status	The handshake status, normally 101 Switching Protocols.
Headers	The server’s handshake headers, plus x-messages-received with the number of messages collected.
Body	One message: the message itself (pretty-printed when it’s JSON). Several: a JSON array of them. Binary messages appear as base64 strings.

WebSocket requests have no Scripts tab of their own. Put tests in the collection’s or a folder’s post-response script, and check pm.info.requestName when a test is only for this request:

Collection post-response script

if (pm.info.requestName === "Echo socket") {
  pm.test("server replied", () => {
    pm.expect(Number(pm.response.headers.get("x-messages-received"))).to.be.above(0);
  });
  pm.test("reply is the welcome event", () => {
    pm.expect(pm.response.json().type).to.eql("welcome");
  });
}

A failed handshake or a refused connection is reported as an error with no response.

Not through Cloak Proxy

WebSocket requests from the API client connect straight to the server, so they don’t appear in the main traffic list. To inspect WebSocket traffic from your own apps, capture it and use the WebSocket view in the inspector. See WebSocket and GraphQL.

Credentials in headers

Handshake headers are saved with the request in your workspace files. Put tokens in a secret environment variable or the vault and reference them, as in Bearer {{token}}, so they stay out of Git and exports.
