Query language

The quick filter is also a query bar. Type what you’re looking for as conditions, such as status:5xx app:ShopApp dur:>500ms -host:cdn.*, and the traffic list shows only the requests that meet all of them. Fields are colored as you type, autocomplete suggests fields and the values in your session, and you can save a query to use again.

Highlight and extract rules use the same language. A rule colors and tags the requests a query picks, and it can copy a value from each one, such as an order ID, into its own column of the traffic list.

1234

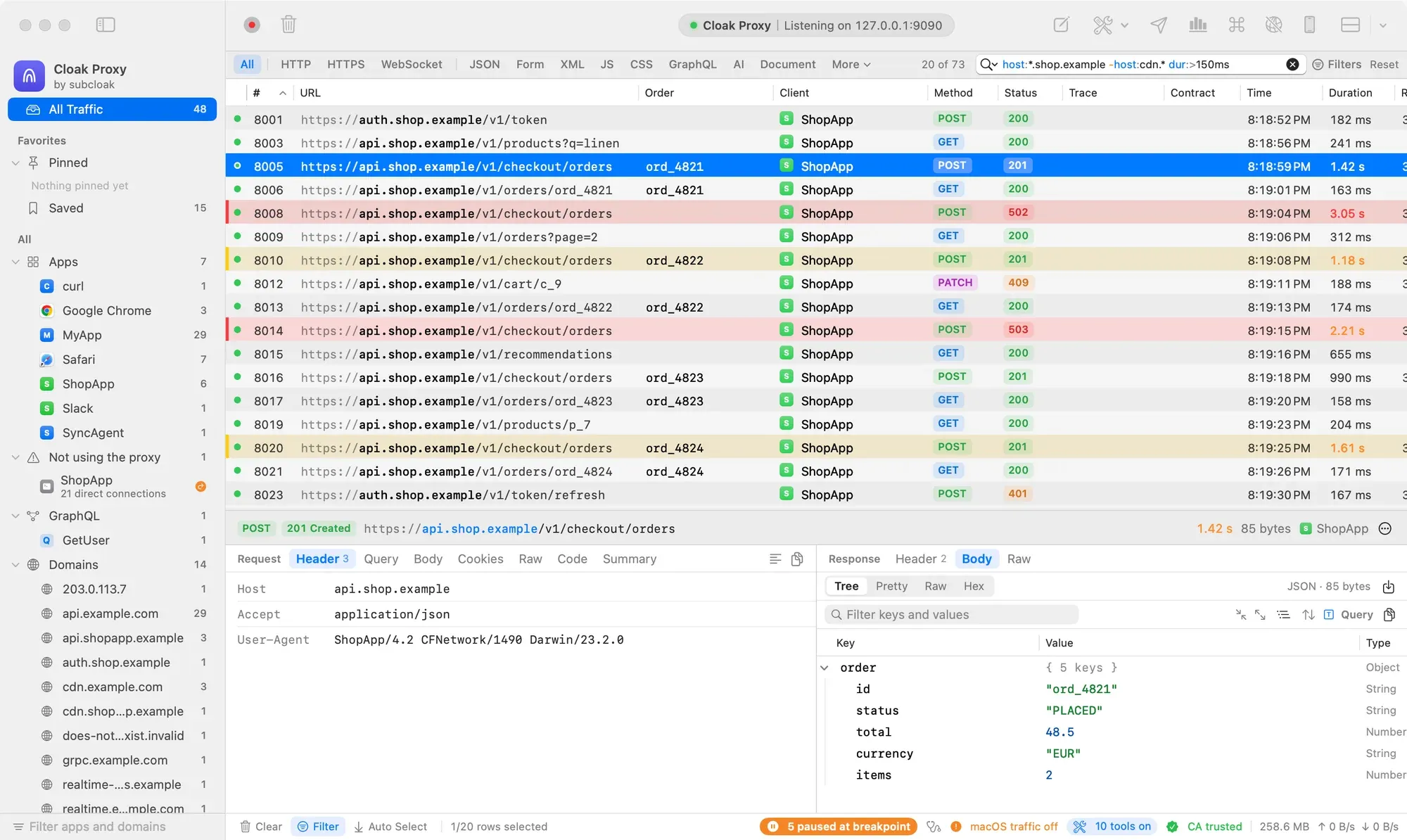

A typed query, an extracted Order column and rows colored by highlight rules.

1. The query bar, colored as you type
2. How many requests match
3. A column filled by an extract rule
4. A row colored by a highlight rule

×

Type a query

1. Press ⌘ F, or click the search field at the right of the filter bar.

2. Type a field name and a colon, then a value. For example status:5xx.

   As soon as the text contains a field, the field turns blue and the bar widens. The list updates as you type, or after a short pause when the query reads headers or bodies.

3. Add more conditions, separated by spaces. A request must meet all of them.

   For example status:5xx app:ShopApp shows server errors from ShopApp only.

4. Press Esc to close the suggestions, and Esc again or the clear button to remove the query.

Text without any field is a plain search, exactly as before: it searches the URL, or whatever Search in says in the magnifying glass menu. Words next to fields are searched the same way, so status:5xx checkout shows server errors whose URL contains checkout. With Search in set to All or a body field, the Found In column shows where those words were found.

Tip

To search for text that looks like a field, such as id:42 in a body, put it in quotes: "id:42". Choosing a match other than Contains in the magnifying glass menu (such as Regex) also takes the text literally.

Autocomplete

A list under the bar suggests what can come next:

• Field names as you type a word: sta offers status:, dur offers duration:.
• Values after a colon: status classes and codes, methods, the hosts and apps in your session, content types, is: flags, GraphQL operations, and example durations and sizes.
• Header names after header., req.header. or resp.header., and your extract columns after col..
• Saved queries while the bar is empty.

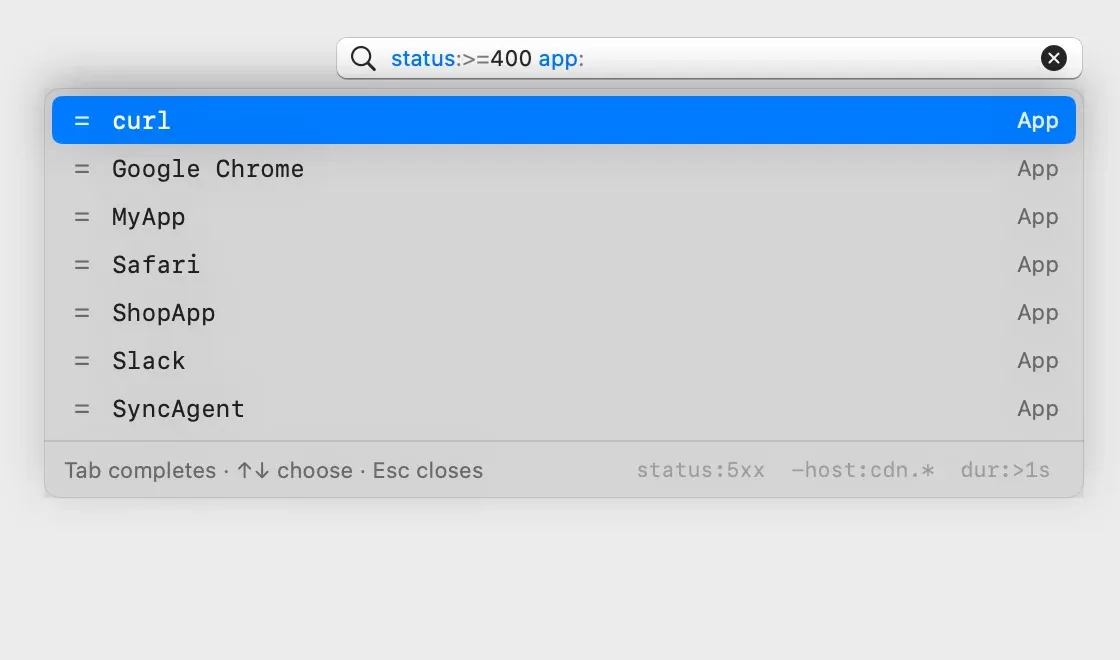

Values come from your session: here, the apps that sent requests.

×

Key	Does
↓ ↑	Move through the suggestions
Tab	Put the selected suggestion in (the first one if none is selected)
Return	Put in the suggestion you moved to; otherwise filter now and close the list
Esc	Close the list

When part of the query can’t be read, the list shows why at the bottom, the part is underlined in red, and an orange triangle appears before the bar (hold the pointer over it to read the problem). The rest of the query still filters, so the list doesn’t empty while you finish a term.

Syntax

Write	Means
field:value	The field contains the value (text), or equals it (numbers)
a b	Both (AND). AND and && also work
a OR b	Either one. | and || also work. OR is uppercase
-a, !a, NOT a	Not a
( … )	A group, such as (status:401 OR status:403) path:/admin*
field:a,b	Either value, such as method:PUT,PATCH
"two words"	A value or word with spaces. \" is a quote inside it

AND binds tighter than OR: a OR b c means a OR (b c).

Matching text

Write	Matches when the value…
host:example	Contains example, ignoring case
host:*.example.com	Matches the whole pattern. * stands for any run of characters
host:=api.example.com	Is exactly api.example.com, ignoring case
path:~^/v[0-9]+/	Matches the regular expression (ICU syntax, ignoring case). resp.body~error also works
header.X-Debug:*	Exists, with any value. -header.X-Debug:* means it’s missing

method and scheme match exactly by default, so method:GET doesn’t match a custom GETX.

Matching numbers

status, duration, size, req.size, port and id take numbers.

Write	Matches
status:404	Exactly 404
status:5xx	500 to 599 (1xx to 5xx)
status:200-299	A range
status:>=400, >, <, <=	Comparisons. dur>500ms without the colon also works
dur:>1.5s	Durations in ms (the default), s or m
size:>1MB	Sizes in bytes (the default), KB, MB, GB (1,000) or KiB, MiB, GiB (1,024)

A request with no response doesn’t match status: or size: comparisons, and one still in progress doesn’t match duration:. Use is:pending and is:failed for those.

Fields

Field	Also written	Matches
status	code, sc	The response status code
method	m, verb	The HTTP method
host	domain	The host name
path		The path, with the query string
url		The whole URL
param.name	query.name, qp.name	A query-string parameter: param.page:2
scheme		http or https
port		The port
version	proto	The HTTP version: version:2
app	process	The app that sent the request (its name or bundle ID)
device		Another device, by address, kind (iPad) or name
ip	client	The client’s address
type	kind	A content-type tab’s name (json, image, graphql…), or else the Content-Type
mime	ctype, content-type	The Content-Type header
duration	dur, latency, took	How long the request took
size	resp.size	The response body’s size
req.size	reqsize	The request body’s size
body		The request or response body, decompressed
req.body	reqbody	The request body
resp.body	res.body, response.body	The response body
header	headers	Any header as a Name: Value line, or one header’s value: header.X-Cache:HIT
req.header	request.header	A request header: req.header.Authorization:Bearer*
resp.header	res.header	A response header: resp.header.Cache-Control:no-store
json.path		A value in the response’s or request’s JSON body: json.$.user.id:42
req.json.path		A value in the request’s JSON body
resp.json.path	res.json.path	A value in the response’s JSON body: resp.json.$.total:>100
gql	graphql, op, operation	The GraphQL operation’s name or type, or errors
contract		What API Contracts found: violation, error, warning, passed
trace	traceid	A distributed-tracing ID in the headers: W3C traceparent, B3, AWS X-Ray, Google Cloud, Jaeger, Sentry or Datadog
tag	tags	Tags set by debugging tools and by highlight rules
rule		The name of a highlight or extract rule that matched
col.Name	column.Name	The value an extract rule put in its column: col.Order:ord_*
id		The request’s number in the list
text	any, all	Anywhere: URL, method, status, headers and bodies
is		One of the flags below
tab	browser.tab	The browser tab that made the request, by title or URL, from the browser extension

JSON paths use the same JSONPath as rule conditions; the leading $. can be left out (resp.json.order.id:7). With >, < and the other comparisons, JSON values and columns compare as numbers.

is: flags

Flag	Requests that…
is:error	Failed, got a 4xx or 5xx, or got GraphQL errors
is:failed	Got no response (refused, timed out, a TLS error)
is:pending	Are still waiting for the response
is:complete	Have a response
is:redirect	Got a 3xx
is:websocket	Upgraded to a WebSocket
is:graphql	Are GraphQL requests
is:gqlerror	Got a 2xx GraphQL response with errors
is:decrypted	Are HTTPS that Cloak Proxy decrypted
is:tunnel	Are encrypted tunnels that weren’t decrypted
is:stream	Were streamed (SSE, JSON lines, chunks)
is:device	Came from another device
is:modified	Were changed or answered by a debugging tool such as Map Local
is:highlighted	Were colored by a highlight rule

Examples

To find	Query
Server errors from one app, except the CDN	status:5xx app:ShopApp -host:cdn.*
Slow checkout calls	path:/checkout* dur:>1s
Every failure except analytics	is:error -host:*.example.net
One GraphQL mutation that failed	gql:CreateOrder is:error
Large responses that weren’t cached	size:>1MB header.X-Cache:MISS
Unauthorized or forbidden admin calls	(status:401 OR status:403) path:/admin*
Orders over 100	resp.json.$.order.total:>100
Requests without an auth header	-req.header.Authorization:*
Every request of one trace	trace:4bf92f3577b34da6
Timeouts, by regex in the body	resp.body~"time(d )?out"
What one browser tab sent	tab:Checkout
Requests no tab reported (background traffic)	-tab:*

Save queries

Save a query

1. Type the query.
2. Click the magnifying glass at the left of the bar and choose Save Query….
3. Type a name and click Save. Saving under an existing name replaces that query.

Use a saved query

Click the magnifying glass and choose the query under Saved Queries, or click in the empty bar: saved queries are the first suggestions.

Delete one

Click the magnifying glass and choose Delete Saved Query › the query.

Saved queries are kept between launches. An assistant can save one too, with set_traffic_filter and save_as.

Queries and the Filters panel

The Multiple Filters panel and the query bar convert into each other:

• In the magnifying glass menu, Open in Filters Panel turns each term of the query into a condition row and opens the panel. Terms the panel has no field for, such as dur:>500ms or app:ShopApp, become Query rows.
• Under its conditions, the panel shows them As a query. Move to Query Bar moves them into the bar as one typed query.
• A Query condition takes a typed query, so any query can be one condition among others, combined with all or any.

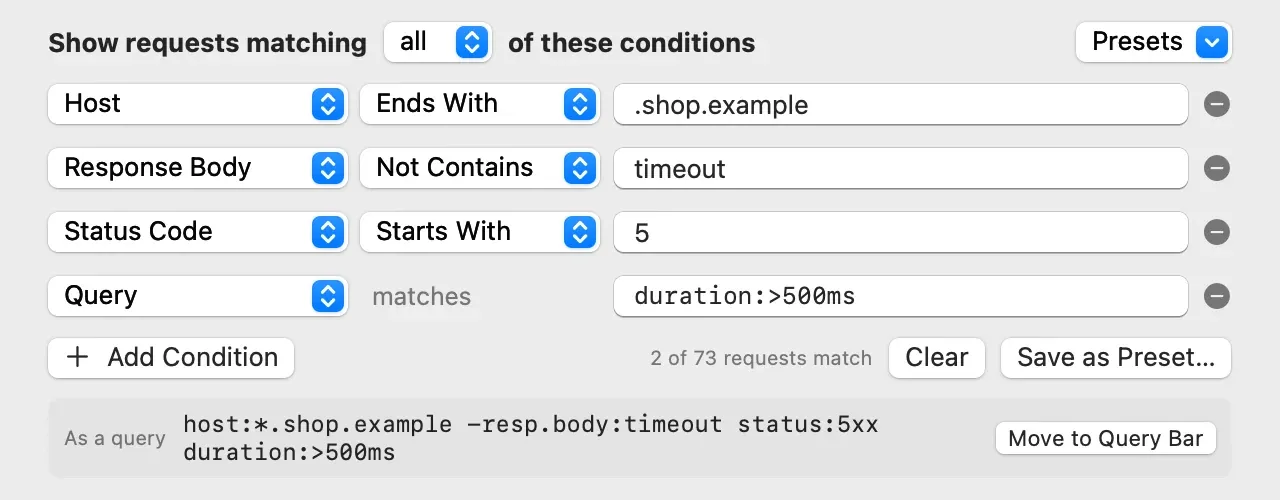

Conditions and the same filter as a query.

×

Add to a query from the list

Right-click a request and choose Add to Query to add one of its details as a term: its host, app, method, status, endpoint (path:/v1/orders/*) or GraphQL operation. The same submenu has Exclude versions (-host:cdn.example.com). A term that’s already there isn’t added twice, and adding a term replaces its opposite.

Highlight and extract rules

A rule picks requests with a query and then:

• Colors their rows in the traffic list. A color you set by hand with Highlight wins over a rule’s.
• Tags them, so tag:slow finds them.
• With a pattern, copies a value from each one into a column named after the rule. You can sort by the column, and filter with col.Order:ord_*.

Rules apply to the whole session, live, as requests arrive.

12345

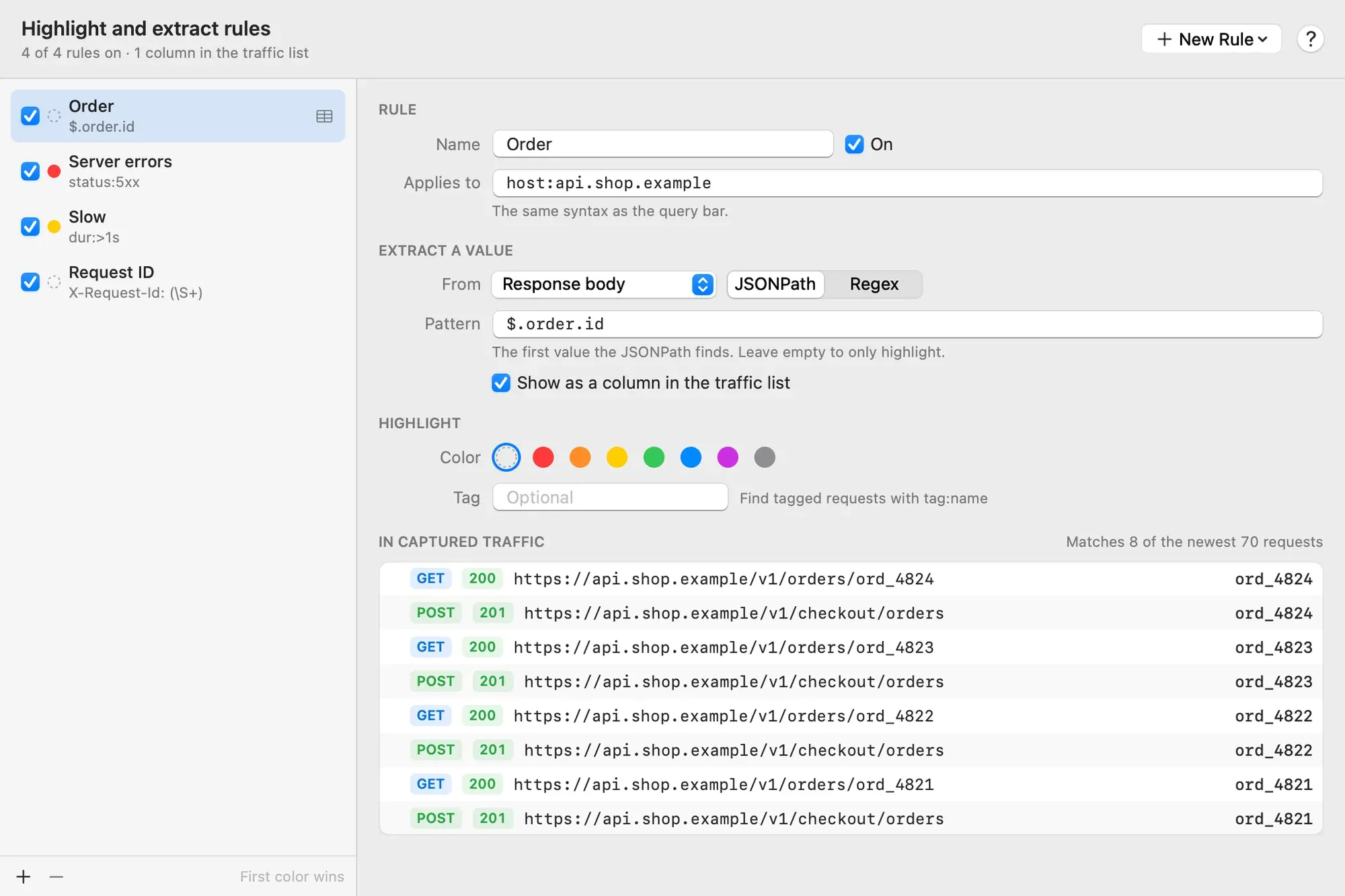

An extract rule, with what it finds in the captured traffic.

1. Rules, in order: the first matching color wins
2. Which requests the rule applies to
3. Where the value is, and how to find it
4. Color and tag
5. What it finds in captured traffic

×

Create a rule

1. Choose Tools › Highlight and Extract Rules… (⇧ ⌘ E).

   You can also right-click the traffic list’s column headers and choose Add Extract Column…, right-click a request and choose Highlight › Highlight Similar Requests…, or choose Highlight and Extract Rules… in the query bar’s magnifying glass menu.

2. Click New Rule and choose Extract Column or Highlight Rule.

3. Fill in the rule. Changes apply as you make them; there’s nothing to save.

4. Check In captured traffic at the bottom: how many of the newest requests (up to 20,000) the rule matches, and the first ones, with the values it found.

Setting	What it does
Name	The column’s title, and what col.Name: and rule:Name refer to
On	Turns the rule off without deleting it. The checkbox in the list does the same
Applies to	A query choosing the requests, in the query bar’s syntax. Empty means every request. It can’t use col:, rule:, tag: or is:highlighted, which depend on the rules themselves
From	Where the value is: Response body, Request body, URL, Request headers or Response headers (headers as Name: Value lines)
JSONPath or Regex	How to find it. JSONPath reads JSON bodies and takes the first value it finds. A regex takes its first group, or the whole match without one, ignoring case
Pattern	The JSONPath ($.order.id) or regex (X-Request-Id: (\S+)). Leave it empty for a rule that only colors and tags
Show as a column in the traffic list	Adds the column. Turn it off to use the value only in queries (col.Name:)
Color	The row’s tint. When several rules match, the first one with a color in the list wins
Tag	Added to matching requests’ tags

A rule with a pattern only matches requests where the pattern finds a value, so its color shows the requests that have one. Values longer than 500 characters are cut. Right-click a rule in the list to duplicate it, turn it off or delete it.

Note

JSONPath reads decompressed bodies of up to 2 MB; a regex reads the first 2 MB of a body. Values are worked out when a row is shown or a query asks for them, and are kept until the request changes, so rules cost nothing for rows you don’t look at.

Large sessions

Typed queries run on the same incremental engine as the rest of the traffic list. Changing the query filters every request again on all of your Mac’s cores; new requests are then checked one batch at a time as they arrive. In a test session of 500,000 requests, status:5xx app:ShopApp dur:>500ms -host:cdn.* takes about a third of a second on an M-series Mac, and new traffic is placed in a few milliseconds. Queries that read bodies or JSON take longer the first time, while bodies are decompressed.

Use queries from an AI assistant

The MCP server gives assistants the same language, so what an assistant filters is a query you can read and change:

Tool	Does
explain_query	Checks a query and says what it means in words, with any problems. Without a query, lists every field and flag
set_traffic_filter	Puts a query in the query bar of the traffic list in front, and returns what matches. save_as also saves it
list_requests and search_requests	Take a query argument
list_extract_rules, save_extract_rule, delete_extract_rule	Manage highlight and extract rules

For example, ask “show me ShopApp’s slow checkout calls” and the assistant can set app:ShopApp path:/checkout* dur:>1s in the bar.

Use queries from the command line

cloakctl filters a saved session, or the running app’s traffic, with a query. In CI, fail a build when a recording has requests it shouldn’t:

# Exit 1 if any request in the recording was a server error, except analytics
cloakctl query 'status:5xx -host:*.example.net' run.har --fail-if-any

# How many slow requests the running app captured
cloakctl query 'app:ShopApp dur:>1s' --count

# Values from extract rules, as JSON
cloakctl query 'path:/v1/orders*' run.har --rules rules.json --json

# Check a query
cloakctl query --explain 'status:5xx app:ShopApp dur:>500ms'

Option	Does
FILE	A .har or .cloaksession file. Without one, the running app’s traffic
--count	Prints only how many requests matched
--json	Prints the matching requests as JSON
--limit N	Prints only the newest N
--rules FILE	Applies highlight and extract rules from a JSON array (as list_extract_rules returns them), so col.Name: and rule: work and the values are printed
--fail-if-any	Exit code 1 when something matches
--fail-if-none	Exit code 1 when nothing matches
--explain	Prints the query in words, normalized, with its problems

The exit code is 2 when the query has a problem; the problem is printed with where it is. cloakctl list --query '…' also takes a query.
