Body viewers

The Body tab of the inspector picks a viewer based on what the body contains. JSON opens as a searchable tree, images and web pages as previews, forms as tables, and binary data as a hex dump. Compressed bodies are decompressed first, and Protobuf, gRPC and MessagePack are decoded into JSON. The same viewer is used for request bodies, response bodies and WebSocket messages.

12345

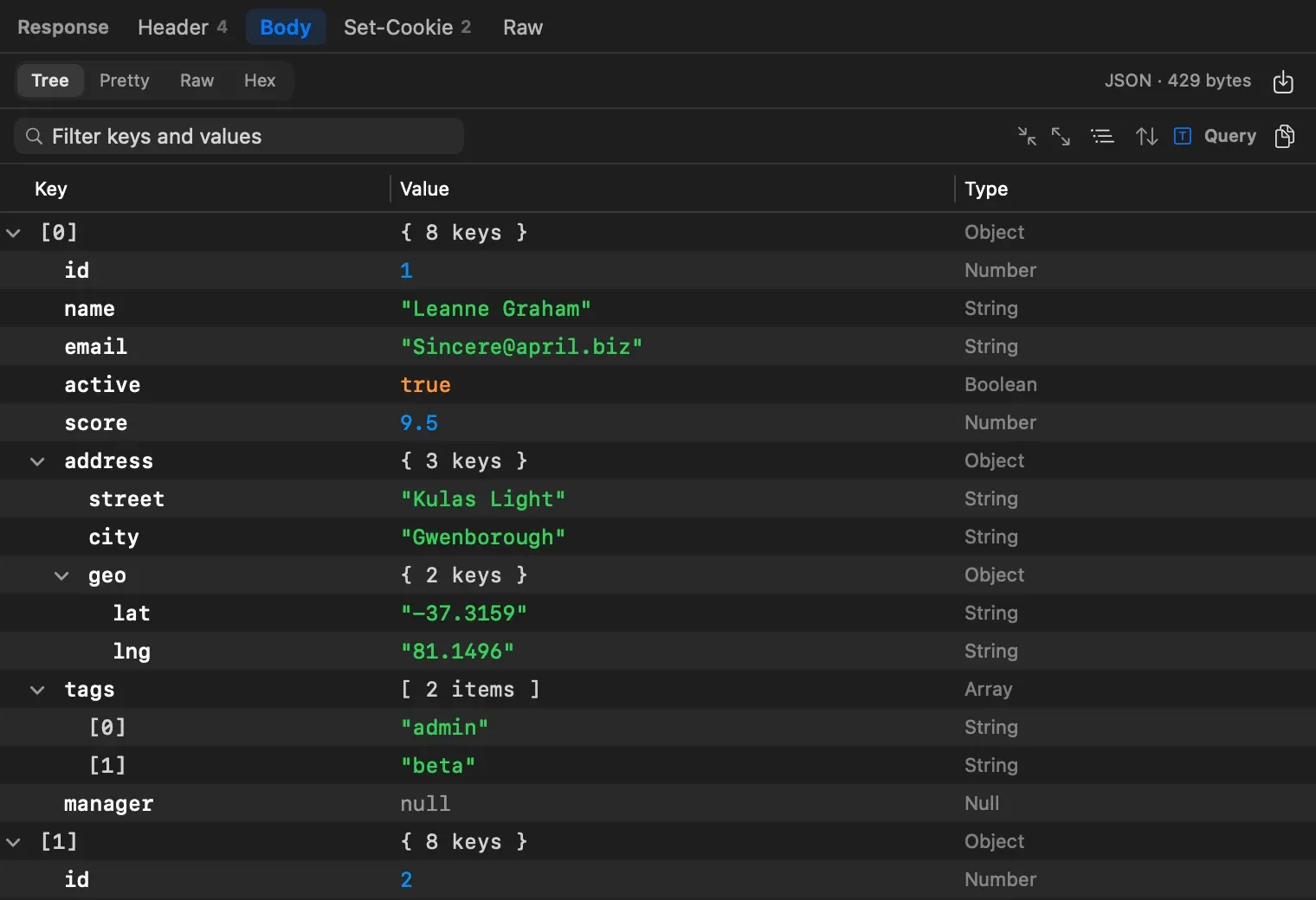

A JSON response in the tree view.

1. Choose a view
2. Content type and size
3. Copy or save the body
4. Filter keys and values
5. Run a JSONPath or jq query

×

Choose a view

The buttons at the top left of the body switch between views. Which views you get depends on the kind of body, and the first one is the default.

Body	Detected when	Views
JSON	The Content-Type contains json, or the body starts with { or [ and parses as JSON	Tree, Pretty, Raw, Hex
gRPC	The Content-Type contains grpc and the body decodes	Tree, Pretty, Raw, Hex
Protobuf	The Content-Type contains protobuf or x-proto and the body decodes	Tree, Pretty, Raw, Hex
MessagePack	The Content-Type contains msgpack and the body decodes	Tree, Pretty, Raw, Hex
Image	The Content-Type starts with image/ and macOS can open it	Preview, Hex
HTML	The Content-Type contains text/html	Preview, Pretty, Raw, Hex
Form	The Content-Type contains x-www-form-urlencoded	Table, Raw, Hex
Text	The start of the body is valid UTF-8, or the type is text/*, XML or JavaScript	Raw, Hex
Binary	Anything else	Hex, Raw

Cloak Proxy remembers your choice for each kind of body. Pick Pretty for JSON once, and every JSON body opens in Pretty until you change it, while HTML keeps its own choice.

The body toolbar

Item	What it does
View buttons	Switch between the views above
Truncated (orange)	The body was larger than the capture limit, so only its first part was kept. It was still forwarded to the app in full.
Decoder note	Says how a binary body was decoded, for example Protobuf decoded without a schema: fields are shown by number
Type and size	The short content type and the body size, for example JSON · 429 bytes
Copy or save menu	Copy Body copies the body as text. Save Body As… saves the decompressed body to a file, named after the last part of the URL.

A request or response without a body shows No body.

Explore JSON in the tree

The Tree view shows JSON as an outline with three columns: Key, Value and Type. Array items appear as [0], [1] and so on. Objects and arrays show a summary such as { 8 keys } or [ 2 items ].

Values are colored by type: strings green, numbers blue, true and false orange, and null gray. Long strings are shortened in the cell and line breaks show as ⏎. Hover a value to see all of it.

Small documents (under about 400 values) open fully expanded. Larger ones open two levels deep. Double-click an object or array to open or close it.

Tree toolbar

Control	What it does
Filter keys and values	Shows only rows whose key or value contains your text (ignoring case), plus the objects and arrays that contain them. Matches are highlighted in yellow.
Expand all	Opens every level
Collapse all	Closes every level
Expand to a level	Expand to Level 1 through Expand to Level 5
Sort keys	Sorts object keys alphabetically. Also applies to copied JSON. Remembered.
Type column	Shows or hides the Type column. On by default. Remembered.
Query	Shows the query bar for JSONPath and jq
Copy menu	Copy Pretty JSON, Copy Minified JSON and Copy Original Text (the body exactly as received, after decompression)

When a query result is showing, Copy Pretty JSON and Copy Minified JSON copy the result.

Right-click a row

Item	Appears for	Copies or does
Copy Key	Every row	The key name, or the array index
Copy Value	Every row	Strings without quotes; objects and arrays as formatted JSON
Copy JSONPath	Every row	The row’s path, for example $.data.items[0].name. Keys with spaces or symbols are quoted: $['first name'].
Copy as Pretty JSON	Objects and arrays	The subtree, indented
Copy as Minified JSON	Objects and arrays	The subtree on one line
Expand Children	Objects and arrays	Opens everything inside the row
Collapse Children	Objects and arrays	Closes everything inside the row
Filter by “key”	Object keys	Puts the key in the filter field, so you see every place it appears

Query JSON with JSONPath

JSONPath picks values out of a large document by path, for example every product name over a certain price.

1. In the Tree view, click Query.

2. Choose JSONPath in the menu at the left of the query bar.

3. Type an expression, such as $.data.items[?(@.price > 10)].name.

4. Press Return or click Run.

   The tree shows the matches as an array, and the bar shows the count, such as 2 matches. A mistake shows an error in red with its position, such as Expected ‘]’ (at position 14).

5. Click Clear to go back to the full document.

The query bar remembers the language you chose. Selecting another request clears the result.

JSONPath syntax

Syntax	Selects	Example
$	The whole document. Optional: data.items works too.	$
.key	A key of an object	$.data.owner
['key']	A key with spaces or symbols, in single or double quotes	$['first name']
['a','b']	Several keys	$.data.owner['name','email']
[n]	An array item. Negative numbers count from the end.	$.data.items[-1]
[n,m]	Several items	$.data.items[0,2]
[start:end:step]	A slice. Any part can be left out.	$.data.items[0:2]
[*] or .*	Every item or value	$.data.items[*].name
..key	The key at any depth	$..email
..*	Everything at any depth	$.data..*
[?(…)]	Items that pass a filter	$.data.items[?(@.price < 10)]

Inside a filter, @ is the current item.

Filter	Meaning
@.price > 10	Compare with ==, !=, <, <=, > or >=. Numbers compare as numbers, text as text.
@.name == 'Lamp'	Text in single or double quotes
@.name =~ /^L/	Matches a regular expression (also written as a quoted string)
@.tags	The key exists
!@.tags	The key doesn’t exist
@.price > 5 && @.price < 50	Both must be true. Use || for either, and parentheses to group.
@.active == true	Also false and null
@.tags[0] == 'home'	Paths can include indexes and quoted keys

JSONPath examples

Given this response:

Response body

{
  "data": {
    "items": [
      { "id": 1, "name": "Mug", "price": 12, "tags": ["kitchen"] },
      { "id": 2, "name": "Lamp", "price": 40, "tags": ["home", "sale"] },
      { "id": 3, "name": "Pen", "price": 3 }
    ],
    "owner": { "name": "Ada Park", "email": "ada@example.com" }
  }
}

Expression	Result
$.data.items[0].name	["Mug"]
$.data.items[-1].name	["Pen"]
$.data.items[*].name	["Mug", "Lamp", "Pen"]
$.data.items[0:2].id	[1, 2]
$..name	["Mug", "Lamp", "Pen", "Ada Park"]
$.data.items[?(@.price > 10)].name	["Mug", "Lamp"]
$.data.items[?(@.tags)].id	[1, 2]
$.data.items[?(@.name =~ /^L/)].price	[40]
$.data.owner['name','email']	["Ada Park", "ada@example.com"]

Query JSON with jq

jq is a command-line JSON processor with its own language for filtering and reshaping JSON. Cloak Proxy runs the jq installed on your Mac.

1. In the Tree view, click Query.

2. Choose jq in the menu at the left of the query bar.

3. Type a filter, such as .data.items[] | select(.price > 10) | .name.

4. Press Return or click Run.

   When jq returns one value, the tree shows it. When it returns several, they’re shown as an array.

Filter	Result for the example above
.data.items | length	3
.data.items[] | select(.price > 10) | .name	"Mug" and "Lamp", shown as an array
[.data.items[] | {name, price}]	An array of objects with only name and price
.data.items | map(.price) | add	55

Where jq comes from

macOS 15 Sequoia and later include jq at /usr/bin/jq. On macOS 14 Sonoma, install it with brew install jq. Cloak Proxy also finds it in /opt/homebrew/bin and /usr/local/bin. Without it, running a query shows jq isn’t installed. Install it with brew install jq. A query that runs longer than 5 seconds is stopped. The JSON never leaves your Mac.

Pretty, Raw and Hex

Pretty

For JSON, Pretty re-indents the document with two spaces and colors it: keys purple, strings green, numbers blue, true and false orange, null gray. Key order is kept as received. Coloring is skipped for very large documents (around 3 MB and up). For HTML, it shows the markup as text.

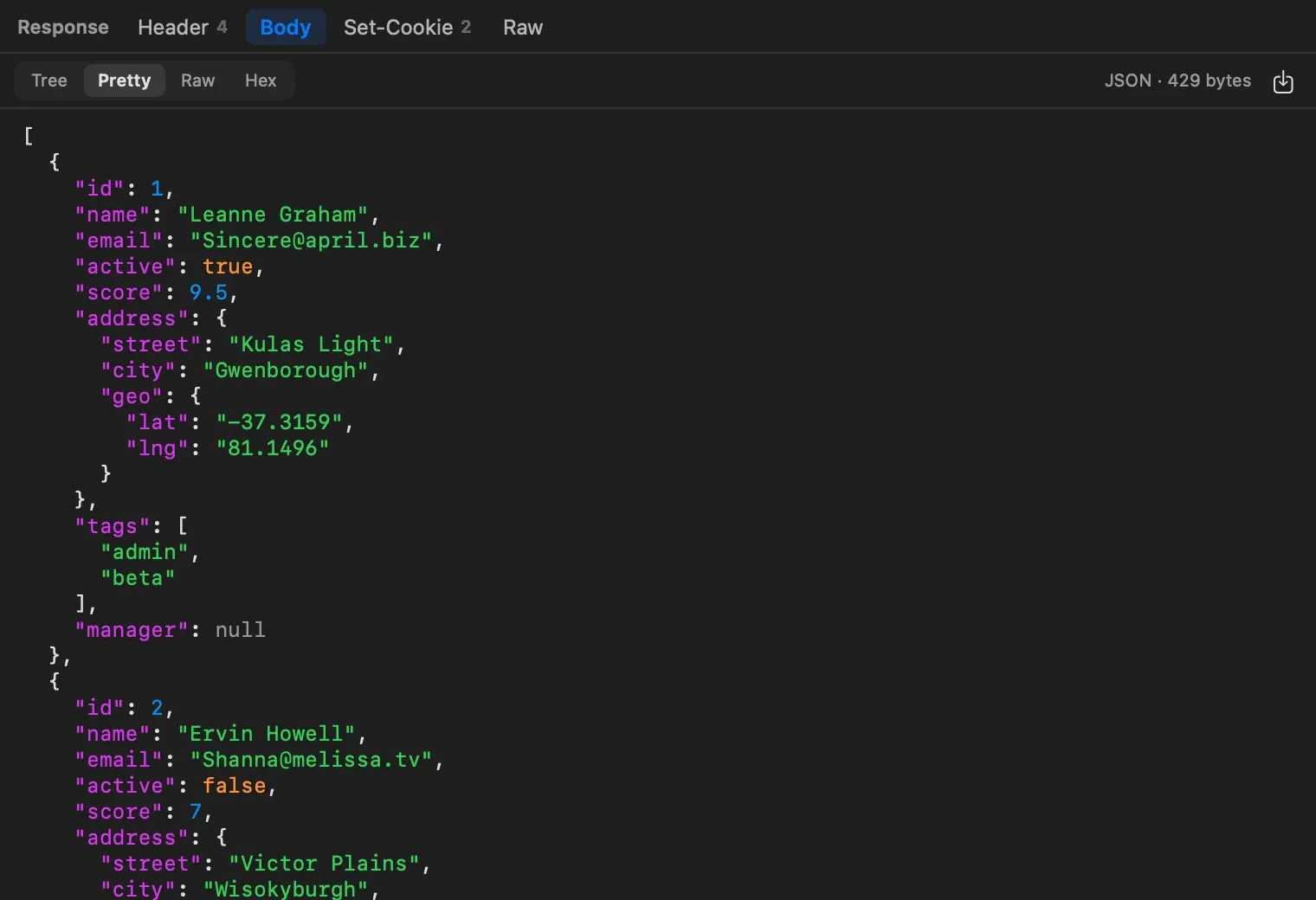

Pretty JSON, indented and colored.

×

Raw

Raw shows the body as text exactly as it arrived (after decompression). Bodies over 5 MB show the first 5 MB and a note.

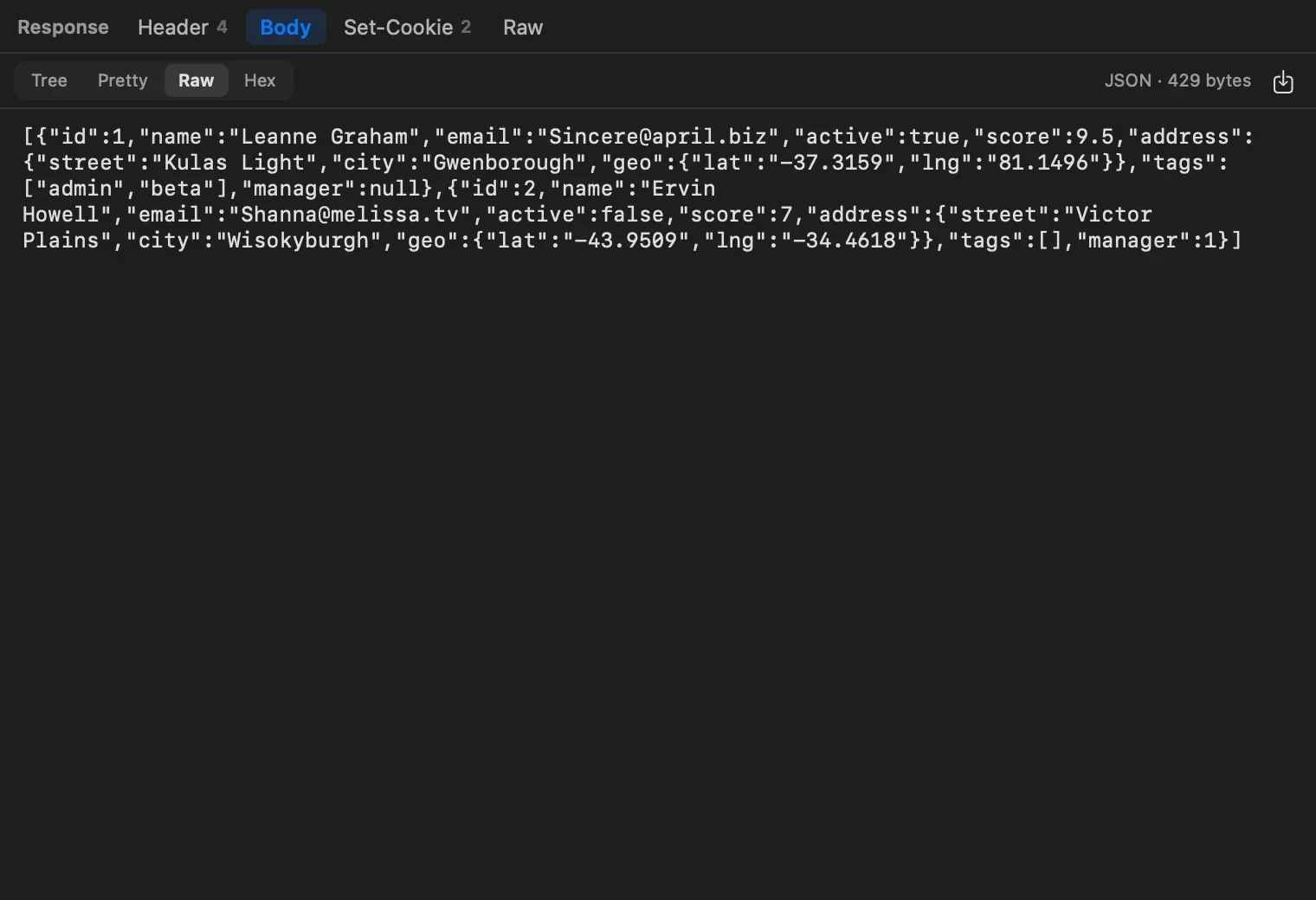

The original text, unformatted.

×

Hex

Hex shows a hex dump: the offset, sixteen bytes in hexadecimal, and the same bytes as text, with a dot for anything that isn’t a printable character. It shows the first 256 KB.

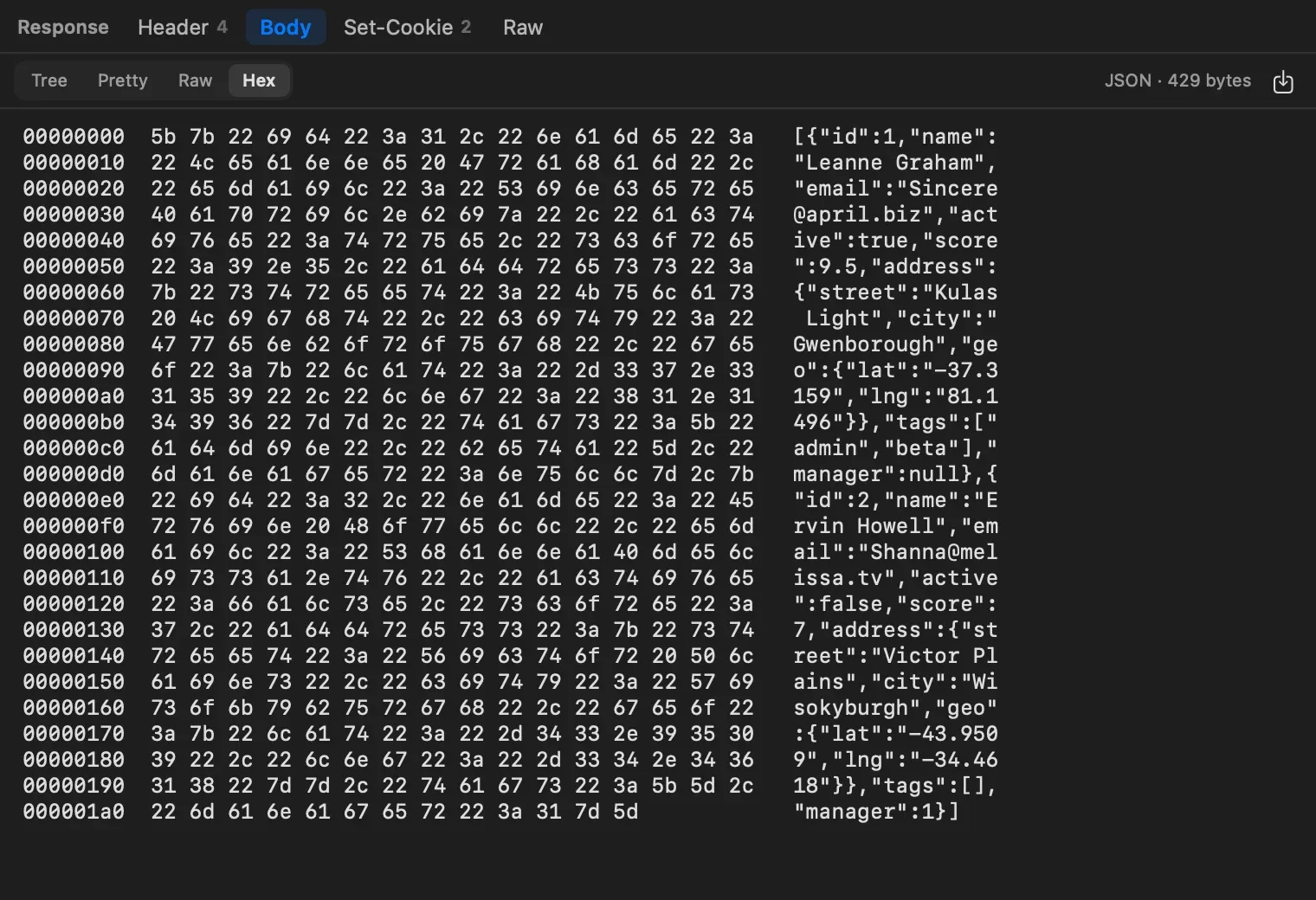

Every byte, with offsets.

×

All three are selectable text. Press ⌘ F inside them to open a find bar, and right-click a selection to decode it with Quick Preview.

Preview HTML pages

Preview renders an HTML body as a web page, so you can see what the server sent without opening a browser. JavaScript is turned off. Relative links resolve against the request’s URL, so the page can load its own images and stylesheets.

1

HTML bodies open in Preview. Switch to Raw for the markup.

1. Preview, Pretty, Raw and Hex for HTML

×

Preview images

Preview shows the image at its own size, or smaller to fit, on a checkerboard so transparent areas are visible. The caption underneath gives its pixel size and file size, such as 120 × 80 · 10 KB. Any image format macOS can open works.

1

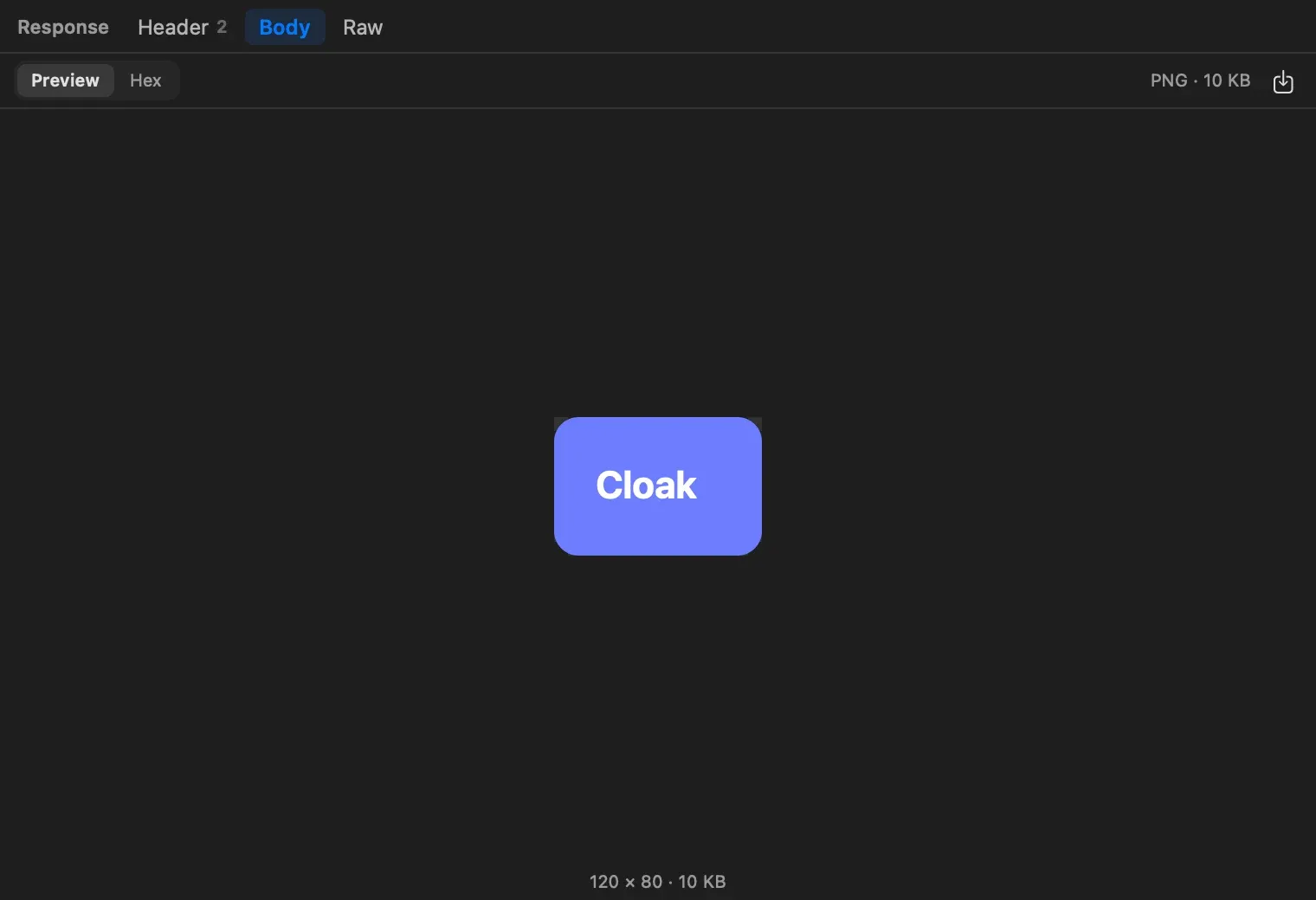

An image response with its dimensions.

1. Pixel size and file size

×

Form and multipart bodies

URL-encoded form bodies (application/x-www-form-urlencoded) open as a Table of names and decoded values. + becomes a space and percent-encoding is decoded. Raw shows the original name=value&… text.

For requests, the Form tab in the inspector shows the same table, and also handles multipart/form-data uploads:

• Text parts show their name and value.
• File parts show their name, then a paperclip, the file name and its size, instead of the file’s bytes.
• A part without a name is listed as part.

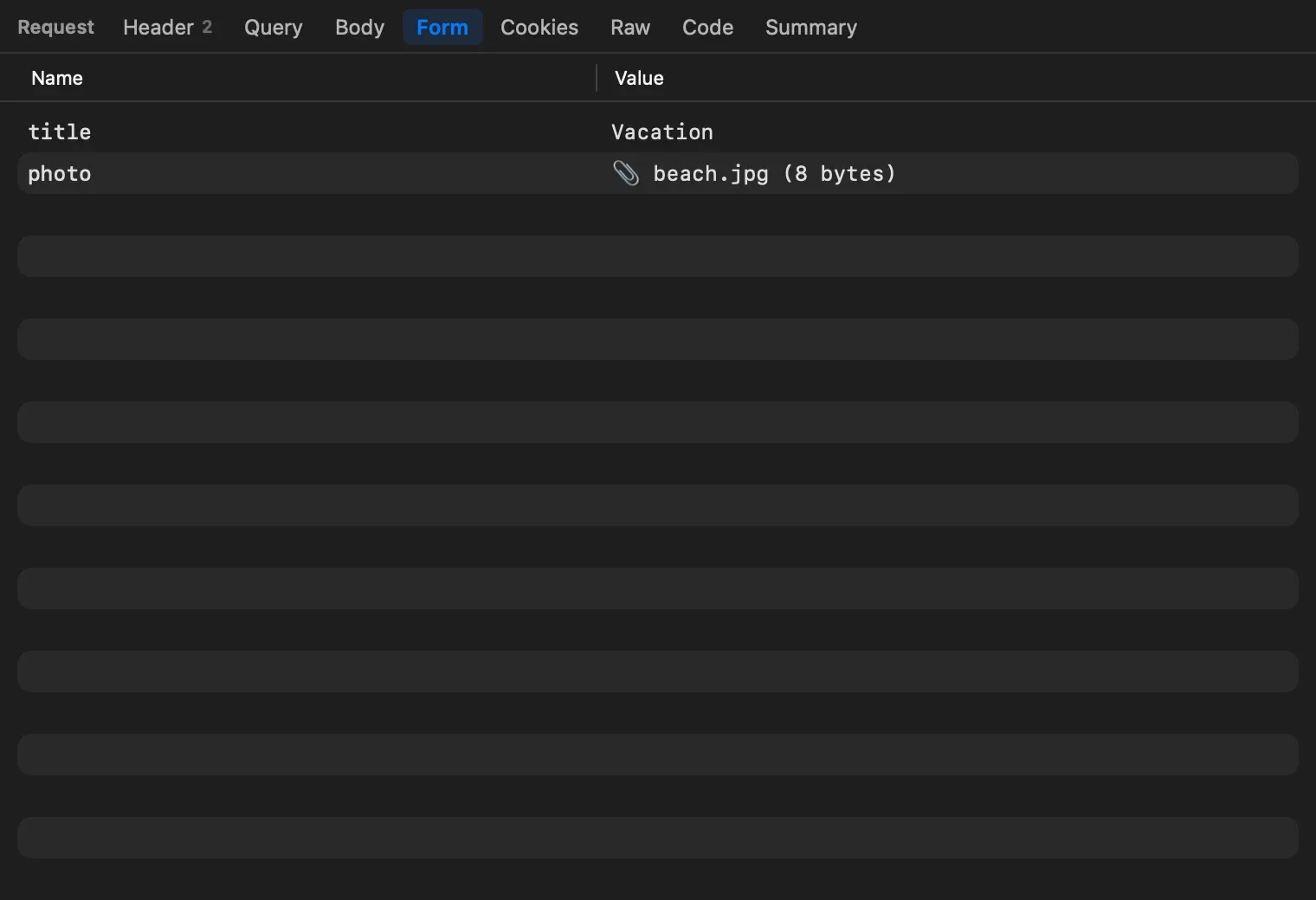

A multipart upload: one text field and one file.

×

To get at a file inside a multipart body, use Save Body As… on the Body tab and extract it from the saved body.

Protobuf and gRPC

Cloak Proxy decodes Protocol Buffers without a schema. The result opens in the Tree view with the note Protobuf decoded without a schema: fields are shown by number.

1

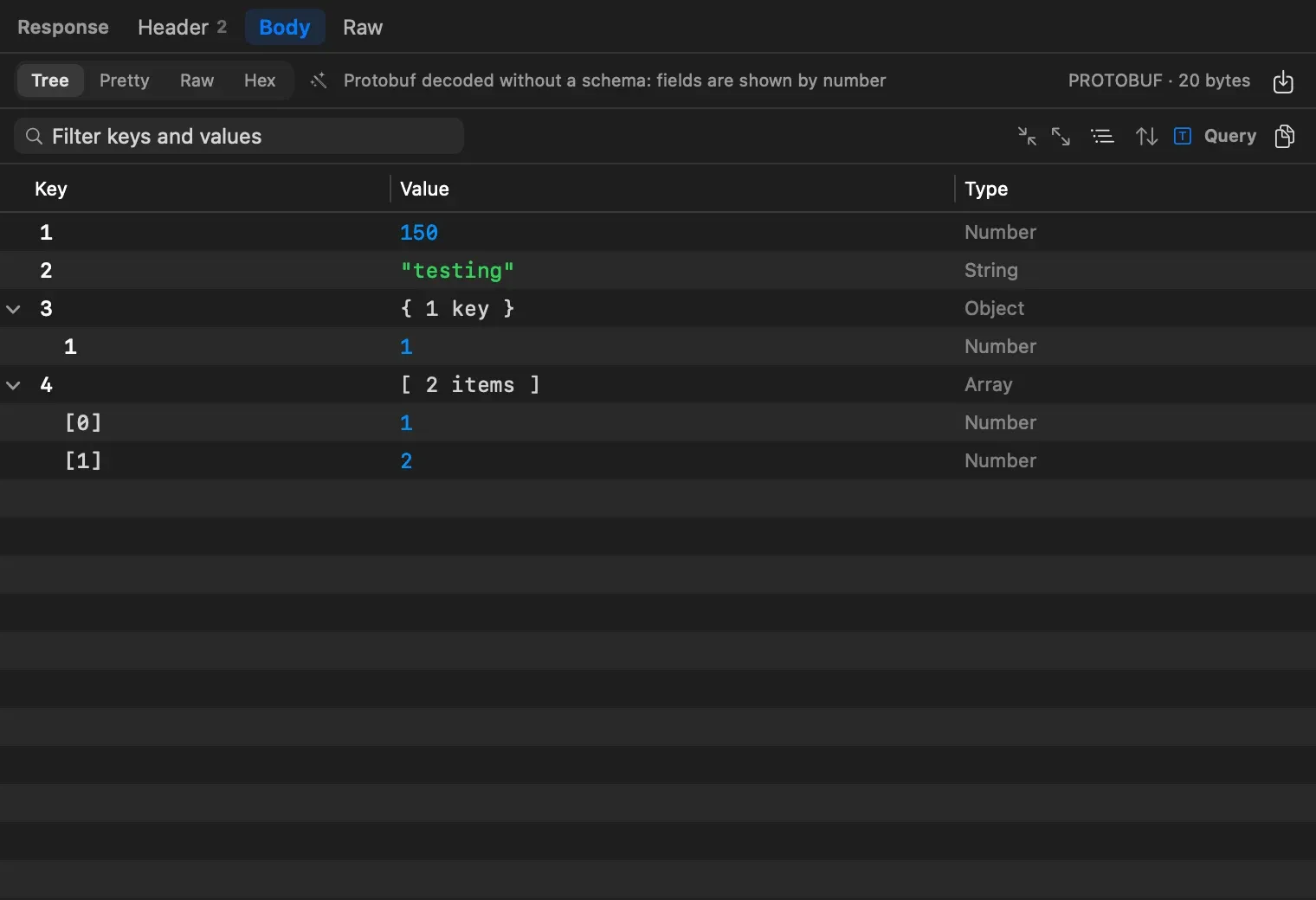

Protobuf fields appear under their field numbers.

1. How the body was decoded

×

In the message	In the tree
Field number	The key, such as 1 or 4
A field that repeats	An array of its values
Varint	A whole number (unsigned)
Fixed 32-bit or 64-bit	A decimal number when the bits look like one, otherwise a whole number
Length-delimited, readable as text	A string
Length-delimited, a valid message	A nested object
Other bytes	A string starting with base64:

Without the .proto file, Cloak Proxy can’t know field names or tell signed from unsigned numbers, so read numbers with that in mind.

gRPC bodies (a Content-Type containing grpc) are split into their length-prefixed messages first, with the note gRPC decoded without a schema: fields are shown by number. One message opens as an object; several open as an array. Compressed gRPC messages can’t be decoded and show as <compressed gRPC message, N bytes>.

MessagePack

MessagePack bodies (a Content-Type containing msgpack) are converted to JSON and open in the Tree view with the note MessagePack shown as JSON. Binary values show as base64: strings, the standard 32-bit timestamp extension shows as an ISO 8601 date, and other extensions show as an object with extType and data.

Compressed bodies

Cloak Proxy reads the Content-Encoding header and decompresses the body before showing it:

Content-Encoding	Supported
gzip, x-gzip	Yes
deflate (zlib-wrapped or raw)	Yes
br (Brotli)	Yes
identity or none	Shown as is
Anything else	Shown as received

If decompression fails, you see the bytes as they arrived. The decompressed body is what you see in every view, in the filters, and in Copy Body, Copy Request and Copy Response. Save Body As… saves the decompressed bytes too.

Size limits

Limit	Value
Body kept for inspection	32 MB by default. Change it with Max captured body size in Settings › General (see Network settings).
JSON tree	Bodies up to about 30 MB. Larger JSON opens as text.
Raw and Pretty text	The first 5 MB
Hex	The first 256 KB
Filter body search	The first 2 MB
