Compare environments

“Does staging behave like production?” usually means two exports and a diff. Compare Environments answers it from the traffic you’ve already captured: each request is sent to the other environment (or to both), and the two answers are compared field by field — status, fields only on one side, types and values — with the fields that change on every call left out.

It has two modes:

• Run Against Both replays captured requests against two environments, or against one and the responses you captured.
• Mirror Live Traffic copies live requests to a second host as the app runs, with a Map Remote rule in mirror mode, and compares each copy’s answer with the original’s.

12345

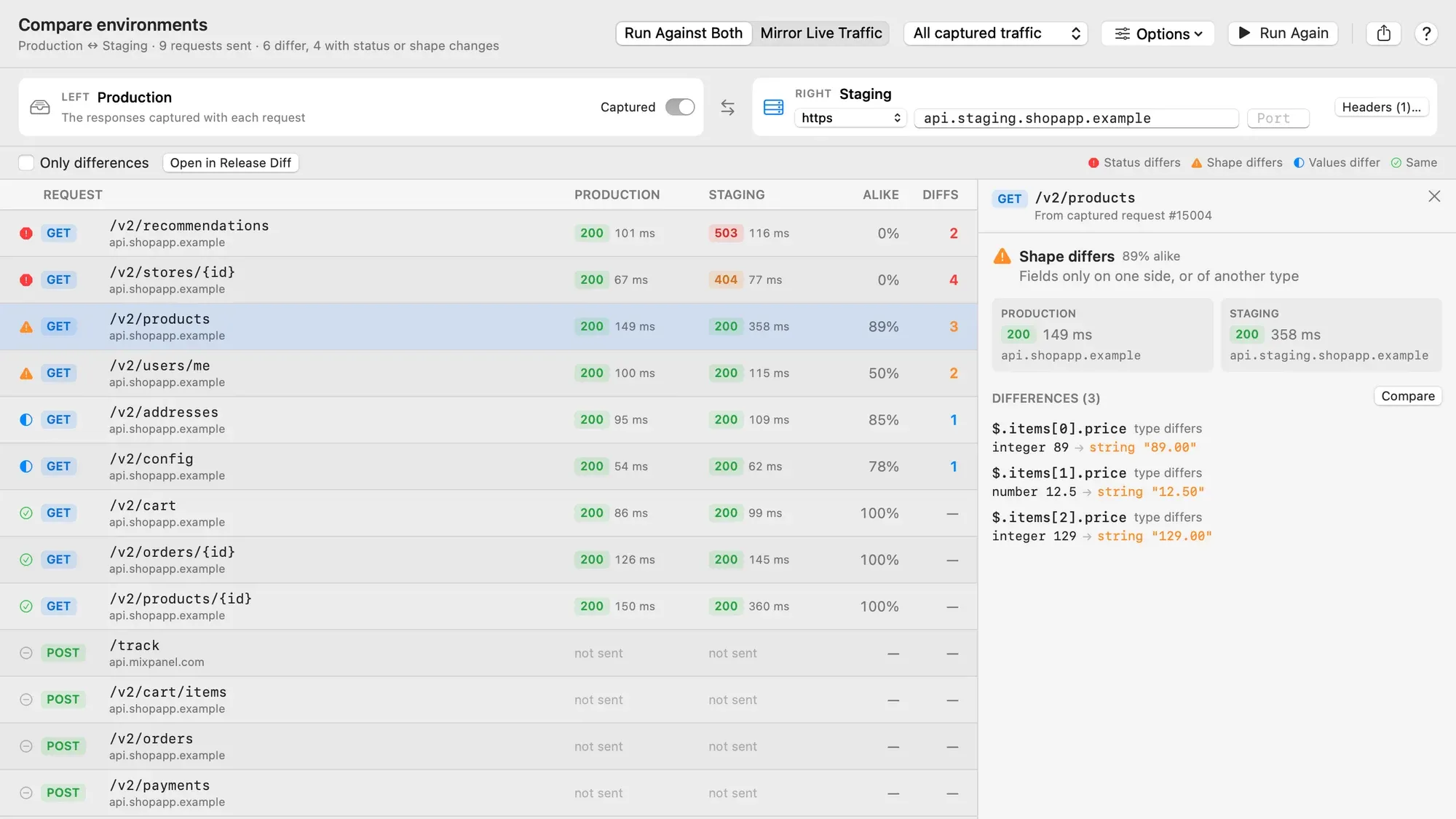

Each captured request against staging, worst first. The detail pane lists the fields that differ.

1. Run against both, or mirror live traffic
2. Compare with the captured responses, or send to a left environment too
3. Where the right side goes, and headers it replaces
4. The result for each request
5. The fields that differ

×

Run against both

1. Capture the requests you want to compare — a journey through the app, or your end-to-end tests — against one environment (say production).

2. Open Tools › Compare Environments…, or select requests, right-click and choose Compare with Another Environment…, or right-click a host in the sidebar and choose Compare it with Another Environment…

3. Set up the two sides:

   • Left: leave Captured on to compare with the responses you captured, or turn it off and give a scheme, host and port to send to a second environment too.
   • Right: the environment to compare with — its scheme, host (such as api.staging.example.com) and port. Empty fields keep the captured value.
   • Headers… on either side replaces headers for that environment, one per line as Name: value, such as its own Authorization token. A name with no value removes the header.

   Click a side’s name to rename it (Production, Staging).

4. Choose the Scope — the selection, an app, a host, or all captured traffic — and click Run (⌘ ↩).

On Linux

Right-click requests and choose Compare Across Environments…, or right-click an app or domain in the sidebar and choose Compare name Across Environments…. In a Map Remote rule set to Send a copy there and compare, Show Comparisons opens the window on Mirror Live Traffic. Run is Ctrl Enter, and Esc cancels it.

Each request is sent straight to the servers, not through Cloak Proxy’s tools and not into the traffic list. By default:

• one request per endpoint is sent (/orders/42 and /orders/57 are one endpoint);
• POST, PUT, PATCH and DELETE requests aren’t sent, as they change data — they’re listed as Not sent;
• static files, tunnels and CORS preflights are left out;
• four requests run at once, at most 10 per second per side.

Credentials and writes

The captured request is sent with its headers, including its Authorization and cookies, unless you replace them under Headers. When those credentials would go to a different domain than they were captured for, or when writes are included, Cloak Proxy asks before sending. Only compare environments you’re allowed to test.

Read the results

The window’s subtitle sums up the run: how many requests were sent and how many differ. Each row shows the request, both sides’ status and time, how alike the two bodies are, and how many fields differ:

Result	Means
Status differs	The two sides returned different status codes, such as 200 and 503
Error	One side didn’t answer: it refused the connection, timed out, or the TLS handshake failed
Shape differs	A field is only on one side, or has a different type (a number on one side, a string on the other)
Values differ	The same fields and types, with some different values
Same	The same status and body
Not sent	A write, left out unless you include writes

Rows are sorted worst first; Only differences hides the ones that are the same. Alike is the body similarity score the Authorization Matrix uses, from 0 to 100%.

Select a row for its detail: both sides’ status, time and host, and every field that differs — its JSONPath ($.items[0].price), whether it’s only on one side, a different type or a different value, and the value on each side. Compare shows the two responses side by side, line by line. Right-click a row to show the captured request in the traffic list.

What’s ignored

• Fields that change on every call: timestamps, request and trace IDs, nonces, CSRF tokens, ETags (the same list the Authorization Matrix ignores).
• Key order and number formatting: 5 and 5.0 are the same.
• Anything under Options › Ignore Fields…: one JSONPath per line, such as $.meta.build or $.items[*].stock; a path covers the fields inside it.

When two arrays have different lengths, that’s one difference on the array, and the items they share are compared one by one.

Endpoint by endpoint

Open in Release Diff compares the two sides as two recordings in Release Diff: fields added, removed and retyped per endpoint, status changes and slower calls — useful when many requests share the same change.

Mirror live traffic

Mirror mode copies live requests to a second host while you use the app, and compares each copy’s answer with the original’s. The app’s own requests aren’t changed or delayed: the copy is sent after the original finishes.

1. Open Tools › Edit Map Remote Rules…, add a rule matching your API (such as https://api.example.com/*) and set where copies go: the Scheme, Host and Port of the second environment.

2. Under When a request matches, choose Send a copy there and compare, and make sure Map Remote is on.

3. Use the app. In Compare Environments, choose Mirror Live Traffic to watch the comparisons arrive.

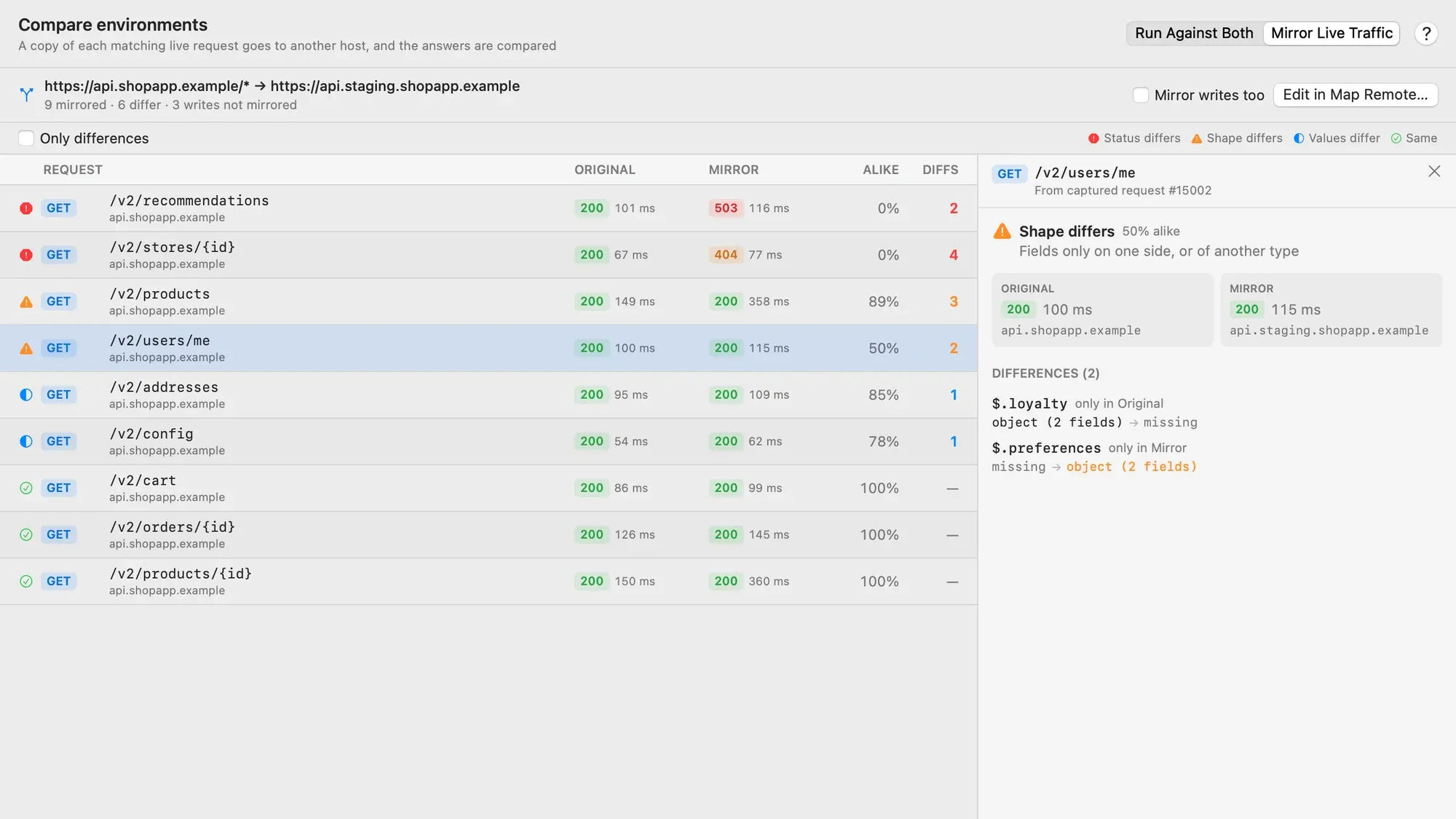

Live requests copied to staging, each compared with the original's answer.

×

The bar above the list shows the mirror rules and counts: requests mirrored, how many differ, writes not mirrored and copies skipped while busy. Mirror writes too also copies POST, PUT, PATCH and DELETE requests — they change data on the mirror host. At most four copies are in flight and five are sent per second; requests that arrive while the mirror is busy are counted and skipped, not queued, so a busy app never floods the mirror. The latest 500 comparisons are kept, and Clear empties them with the session.

A mirror rule doesn’t redirect anything, so a request the rule matches still goes to its own host and shows in the traffic list as usual.

From an AI assistant

The MCP server has two tools:

• compare_environments sends captured requests (scoped with ids, app or host) to the right side — {host, scheme, port, headers, name} — and compares the answers with the captured responses, or with a left side given the same way. It returns the counts and each request that differs, with its fields. include_writes, every_request, ignore_fields, concurrency and requests_per_second work as in the window; format can be markdown or json.
• mirror_report returns the mirror rules and the latest mirror comparisons. Turn a mirror on with upsert_rule (tool map_remote, "mirror": true). On Linux, the app and the headless engine mirror too, so mirror_report works over cloakctl and MCP there.

Ask your assistant

"Compare the ShopApp requests with api.staging.shopapp.example using Authorization: Bearer $STAGING_TOKEN,
 and tell me which endpoints return a different shape."

In CI

cloakctl compare-envs compares a recording with another environment and exits with 2 when a difference matches --fail-on.

Terminal

cloakctl compare-envs --session prod-journey.har --right-host api.staging.example.com \
  --right-header "Authorization: Bearer $STAGING_TOKEN" --fail-on shape --out env-diff.md

Option	What it does
--session FILE / --har FILE	The recording (required)
--right-host HOST	The environment to compare with (required), with --right-scheme http|https, --right-port N and --right-header "Name: value" (repeatable)
--left-host HOST	Send to this environment too, instead of comparing with the captured responses (with --left-scheme, --left-port, --left-header)
--host HOST / --app NAME	Only this host’s or app’s requests
--include-writes / --every-request	Also send writes; send every request, not one per endpoint
--ignore-field JSONPATH	Leave a field out (repeatable)
--insecure	Accept self-signed certificates
--format markdown|json / --out FILE	The output, and where to write it
--fail-on RULE	status (a status differs, or a side failed), shape (also fields and types), values or any (any difference), never (the default)

Exit code	Meaning
0	No request matched --fail-on
1	A usage error, such as a missing --right-host or an unreadable file
2	At least one request matched --fail-on

Limits

• Requests are replayed as captured. A request that depends on state on the server (an order that only exists in production) can differ for that reason alone; compare read-only endpoints, or use test data that exists in both.
• Values are compared exactly. Data that legitimately differs between environments (prices, stock, user records) shows as Values differ; ignore those fields under Ignore Fields.
• Only JSON bodies are compared field by field; other bodies are compared whole.
• Redirects aren’t followed, so a redirect shows as its own status.
• Mirror mode copies requests only while Cloak Proxy is running and Map Remote is on, and only exchanges that completed.
