Trace Value

Trace Value follows one value, such as an order ID, an access token or an email address, through everything Cloak Proxy captured. It shows the response the value first came from, every endpoint that sent it afterwards and exactly where (the path, a query parameter, a header, a cookie or a JSON key), and the responses that returned it again. Use it to understand how an app chains its API calls, to see which calls depend on a login token, or to check whether an ID your server issued ends up somewhere it shouldn’t, such as an analytics service.

Looking for OpenTelemetry traces?

Trace Value follows a value through your captured requests. To see OpenTelemetry trace IDs and open them in Jaeger, Honeycomb or Datadog, see Distributed tracing.

Trace a value

1. Open Trace Value in one of these ways:

   • Choose Tools › Trace Value… (⇧ ⌘ T). If the quick filter holds text, Trace Value traces it; otherwise the window opens empty.
   • Type the value in the quick filter and click Trace next to the result count. The button appears once the filter text is at least 3 characters.
   • In the JSON tree, right-click a value and choose Trace “value”.
   • In a Header, Query, Form, Cookies or Set-Cookie table in the inspector, right-click one row and choose Trace Value.
   • Right-click a request in the traffic list and choose Trace Value…, or Trace “text”… when the quick filter holds text.

2. If the field is empty, type the value and press Return or click Trace.

   The value must be at least 3 characters. Spaces at either end are ignored.

3. Read the summary at the top, then follow the flow map from left to right.

4. Click a card in the flow map or a row under Every occurrence to select those requests in the traffic list.

Each time you trace from somewhere else in the app, the same Trace Value window shows the new value.

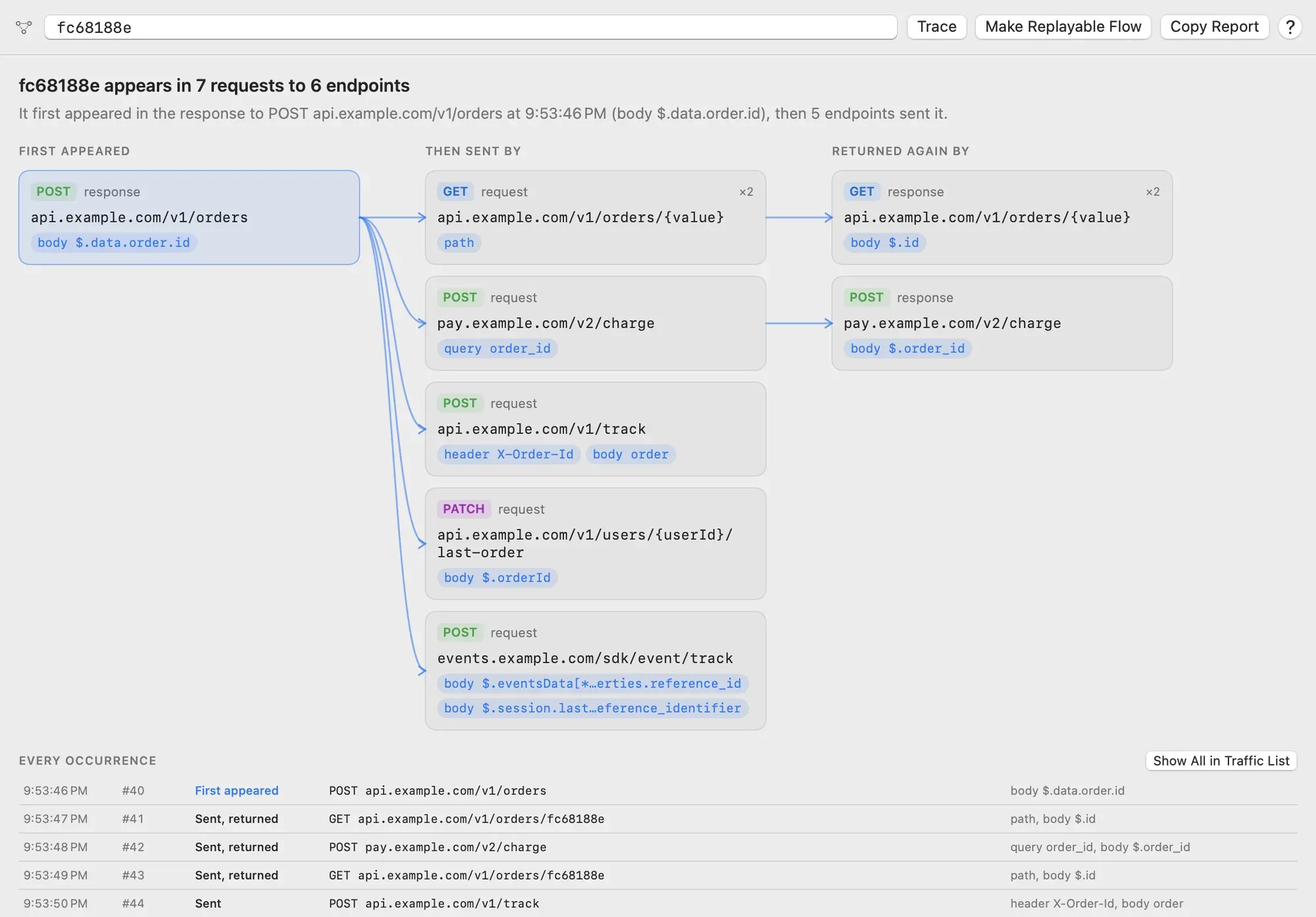

123456

An order ID created by one call, then sent to five others, including an events endpoint.

1. The value to trace. Press Return or click Trace.
2. Make Replayable Flow: replay these requests as a flow in the API client.
3. Copy Report: the trace as Markdown.
4. Where the value first appeared, and the exact place in that response.
5. Each endpoint that sent it later, with where: path, query, header, cookie or body.
6. Show All in Traffic List: filter the list to every request that contains it.

×

Read a trace

The summary

The first line says how many requests contained the value and how many endpoints they went to, for example fc68188e appears in 7 requests to 6 endpoints. The second line names where it came from:

Origin	What it means
It first appeared in the response to endpoint at time	A response delivered the value before any request sent it: the server issued it. The line ends with the place in that response and how many endpoints sent it afterwards.
It was first sent by endpoint at time	A request sent the value before any captured response contained it. The app made it up, or got it from traffic Cloak Proxy didn’t capture: another device, a pinned connection, or a session before this one.

Cloak Proxy compares when each request started with when each response finished, so a value returned by a response counts as its origin only if no request sent it earlier.

When more than 5,000 requests contain the value, an orange note says Only the first 5,000 matches are traced.

The flow map

The flow map has up to three columns, with arrows from where the value came from to where it went:

Column	Shows
First appeared	The response (or request) the value came from. It’s outlined in the accent color.
Then sent by	Every endpoint whose requests sent the value afterwards, in the order each was first used. No later request sent it. when there are none.
Returned again by	Endpoints whose responses contained the value again after it first appeared. Only shown when there are some. A response is linked to its own endpoint’s card in Then sent by when that endpoint also sent the value, otherwise to the origin.

Each card shows:

• The method and whether the card is about the request or the response.
• ×N when several requests to the endpoint carried the value.
• The host and path. A path segment that contains the value is shown as {value}, and other IDs as placeholders, so requests to the same endpoint group together: api.example.com/v1/orders/{value}.
• Where the value was, as chips. A card shows up to 6; hover +N more to see the rest.

Click a card to select its requests in the traffic list.

Where a value can be

Chip	The value is in
path	The URL path
query order_id	A query parameter’s value, or its name
header X-Order-Id	A request or response header (not cookies)
cookie session	A cookie in the request’s Cookie header
Set-Cookie session	A cookie the response set
body $.data.order.id	A JSON body, at that path. Array positions are shown as [*], so the same key in every item of a list is one place: body $.items[*].order_id. A key that contains the value counts too.
body order_id	A form field in an application/x-www-form-urlencoded body
body	Any other body, such as plain text or XML

A body lists at most 8 places. Bodies compressed with gzip, deflate or Brotli are decompressed before they’re searched.

Placeholders in paths

To group requests by endpoint, Trace Value replaces IDs in paths with placeholders:

Segment	Placeholder	Example
Contains the traced value	{value}	/v1/orders/fc68188e → /v1/orders/{value}
A number, a UUID, or 16 or more hexadecimal characters, after a plain word	{wordId}, named from the singular of the word before it	/v1/users/42/last-order → /v1/users/{userId}/last-order
The same, after anything else	{id}	/v21.0/1234567890 → /v21.0/{id}

The same placeholders are used when you export OpenAPI.

Every occurrence

Under the flow map, Every occurrence lists each request that contained the value, oldest first:

Column	Shows
Time	When the request started
#	The request’s number in the traffic list
Role	First appeared or First sent for the origin, then Sent, Returned, or Sent, returned when both the request and its response had it
Request	Method, host and path
Where	Every place the value was, in the request and the response

Click a row to select that request in the traffic list.

Show All in Traffic List sets the quick filter to All, Contains and the value, and selects All Traffic in the sidebar, so the list shows every request that contains it.

Controls

Control	What it does
A value to trace, e.g. an ID, token or email	The value. Press Return to trace it.
Trace	Traces the value. Dimmed until the value is at least 3 characters.
Make Replayable Flow	Opens the Make Replayable Flow sheet with every request in the trace. Only when the trace found something.
Copy Report	Copies the trace as Markdown. Reads Copied until you change the value. Only when the trace found something.

When nothing contains the value, the window says value isn’t in any captured request. Check the value, or capture the traffic that uses it first.

How values are matched

• Upper and lower case don’t matter, so FC68188E finds fc68188e.
• Partial matches count. Tracing fc68 also finds fc68188e. Trace the whole value to avoid unrelated matches.
• Everything except encrypted tunnels is searched: URLs, every request and response header, cookies, and request and response bodies after decompression. Requests to hosts that aren’t decrypted show up as tunnels and can’t be traced into.
• The trace runs once. It uses the requests captured when you clicked Trace. Click Trace again to include newer ones.

Copy the report

Copy Report puts a Markdown summary on the clipboard, ready for a bug report, a pull request or a security finding:

Copied report (shortened)

## Value trace: `fc68188e`

Appears in 7 requests to 6 endpoints.
First appeared in the response to `POST api.example.com/v1/orders` (body $.data.order.id).

### Sent by

- `GET api.example.com/v1/orders/{value}` ×2: path
- `POST pay.example.com/v2/charge` ×1: query order_id

### Every occurrence

| Time | # | Request | Where |
|---|---|---|---|
| 1:49:03 AM | 40 | `POST api.example.com/v1/orders` | body $.data.order.id |
| 1:49:04 AM | 41 | `GET api.example.com/v1/orders/fc68188e` | path, body $.id |

The report has the summary, a Sent by list and a Returned again by list (when there are any), and a table of every occurrence.

Traces contain real values

A report includes the value you traced and the full paths of the requests that carried it. If you traced a token, a session cookie or someone’s email address, the report contains it. Trace and share values from your own test accounts, and remove secrets before posting a report anywhere.

What to use it for

Question	What to look at
Which calls need the login token?	Trace the token. Then sent by lists every endpoint that sent it, and in which header.
Where did this ID come from?	The origin. If it’s First sent, the app created it, or it came from traffic you didn’t capture.
Does an ID from our backend reach a third party?	Look for hosts that aren’t yours under Then sent by. Privacy Map does this for every value at once.
Can I replay this sequence of calls?	Click Make Replayable Flow. It reads each ID from the fresh response when the flow runs.
Does the server accept another user’s ID?	Trace your own ID to find every endpoint that takes one, then test them with Edit and Repeat on your own test accounts. See Pentest your own app.

Trace from an AI assistant

The MCP server has a read-only trace_value tool that takes a value of at least 3 characters. It returns the origin, the endpoints that sent and returned the value with where, and up to 200 occurrences, tracing at most 1,000 matching requests. The search_requests tool finds which requests contain a value without tracing it. See the MCP tools reference.
