Failure scenarios

Since 0.4.0

Apps break in production where the network misbehaves: a request that fails twice and then works, a payment call that never answers, a download that stops halfway, a cache that never refreshes. Network Conditions slows everything down. Failure scenarios break specific requests in specific ways, on a schedule you choose, so you can watch the app’s retry logic, timeouts and error screens do their job.

A scenario is a named group of faults that you switch on and off as a whole, such as “Flaky checkout”. Each fault says which requests it breaks (a URL pattern, method, apps and conditions, such as one GraphQL operation), when (every time, the first N times, after N successes, only the Nth time, or a percentage), and how. A log records what each fault did to each request.

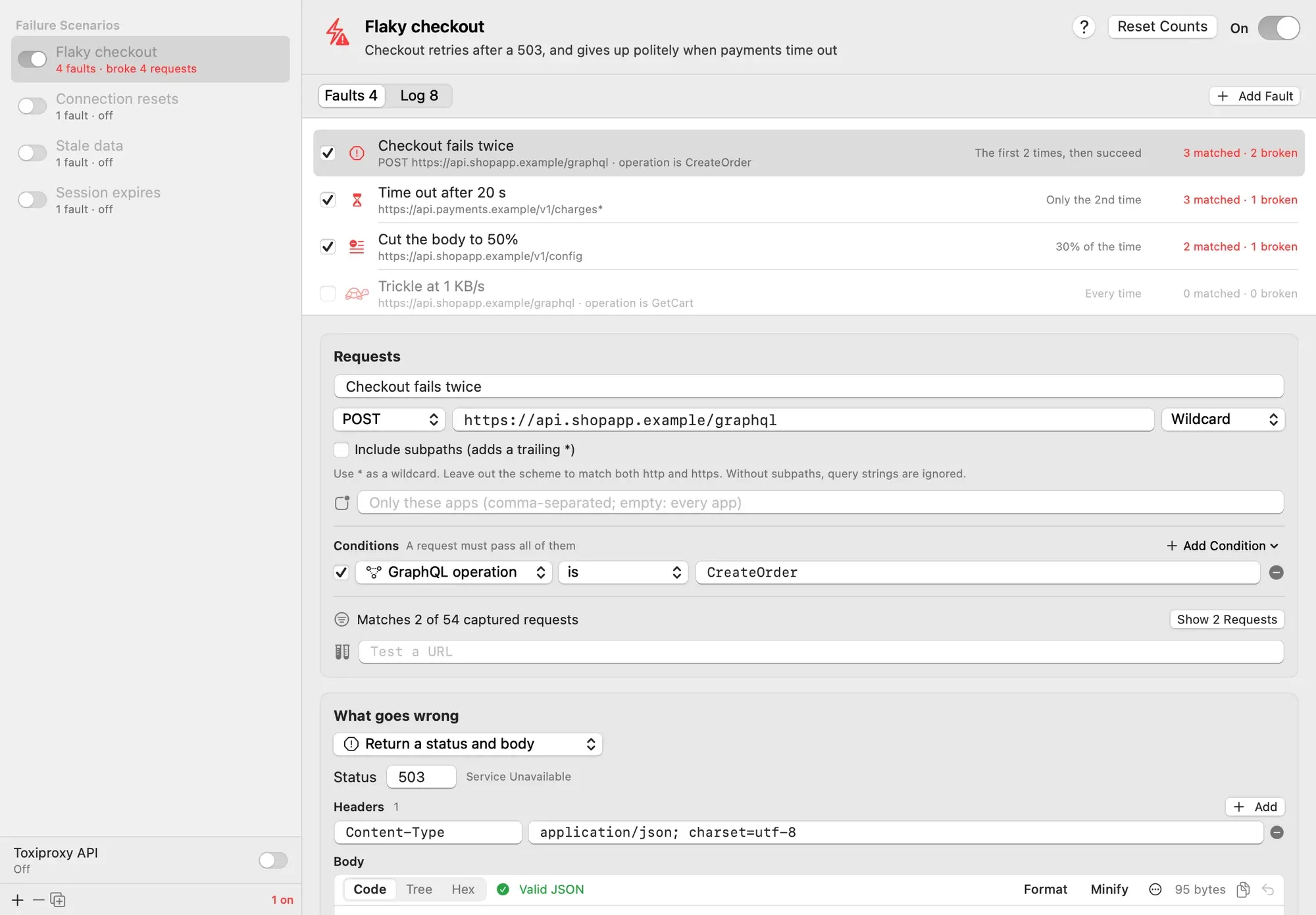

A scenario with four faults, how many requests each matched and broke, and the selected fault's editor.

×

Make a scenario

1. Choose Tools › Failure Scenarios… (⌥ ⌘ F). Or right-click a request in the traffic list and choose Simulate a Failure…: the new scenario’s fault matches that request (and its GraphQL operation) and fails it twice before letting it through.

2. Start from a template, or click + and choose New Scenario. Templates: Flaky API, Random failures, Server down, Timeouts, Connection resets, Dropped downloads, Slow endpoint, Truncated JSON, Stale data and Session expires.

3. Select a fault and set the URL pattern it breaks under Requests. Add conditions to narrow it, such as GraphQL operation is CreateOrder or Header X-App-Version matches ^4.. The line under the conditions shows how many captured requests the fault would match.

4. Choose What goes wrong and When.

5. Switch the scenario On, then use the app. The fault’s matched and broken counts go up as requests arrive, and the Log tab lists each one.

On Linux, the window opens with Ctrl Alt F, or by right-clicking a request and choosing Simulate a Failure….

Scenarios start off, and stay off until you switch them on. Several can be on at once. Switching one on starts its counts from 1 and clears its log, so “the first 2 times” means the first two requests after you switched it on. Reset Counts does the same without switching it off and on.

What goes wrong

Fault	What the app sees	Settings
Return a status and body	The response you write. The server isn’t contacted.	Status, headers and body (default 503 with a JSON error).
Time out	No answer; after the wait the connection closes. Set it longer than the app’s own timeout to see the app give up first.	Seconds (default 30).
Reset the connection	The connection is reset (a TCP RST) before any answer, as when a network or load balancer drops it.
Drop the connection mid-body	The real response’s headers and the first part of its body, then the connection closes. The body is shorter than its Content-Length.	Percentage of the body sent (default 50).
Trickle the response slowly	The real response, a little at a time.	Bytes per second (default 2,048).
Delay the request	The real response, after a wait before the request goes to the server.	Milliseconds (default 3,000).
Truncate the body	The real response with its body cut short and Content-Length to match: valid HTTP, broken JSON or images.	Percentage of the body kept (default 50).
Serve stale data	The first response seen after the scenario went on, again and again, as if a cache never refreshed. Requests are told apart by method, URL and GraphQL operation.

Combine faults in one scenario for a richer case: Delay and Trickle on the same endpoint make a slow endpoint; a status fault for one GraphQL mutation and a timeout for the payment provider make “Flaky checkout”.

When

Trigger	Breaks the matching request
Every time	Always.
The first N times, then succeed	Requests 1 to N; later ones go through. Tests retries that eventually work.
After N successes	Every request after the first N. Tests a session or quota running out.
Only the Nth time	Just request N, for example only the second CreateOrder.
A percentage of the time	That share of requests, at random.

Counting is per fault: each counts the requests it matches. When several faults match one request, the first that fires (top to bottom, across scenarios in the list’s order) breaks it, and the others log Let through (an earlier fault applied).

Read what happened

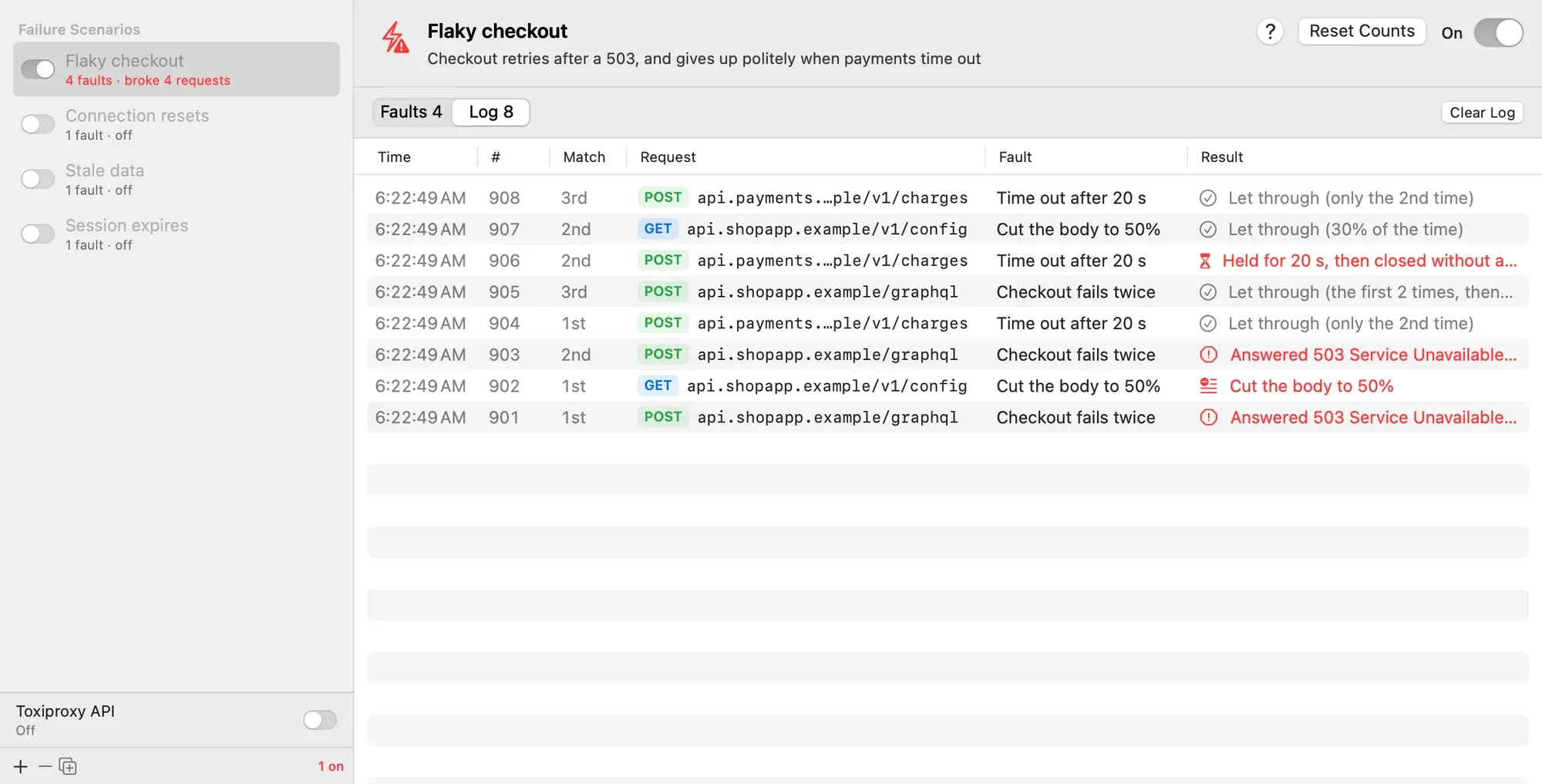

The Log tab lists every request a fault matched, newest first:

What each fault did to each request.

×

Column	Meaning
#	The request’s number in the traffic list. Double-click a row, or right-click it and choose Show Request, to select it there.
Match	Which matching request this was since the scenario went on: 1st, 2nd…
Fault	The fault’s name, or what it does.
Result	What was done, in red, or Let through and why, in grey.

In the traffic list, broken requests are tagged Failure Scenario. A reset shows as failed with Connection reset by failure scenario “…”; a timeout as failed with Timed out: no answer for N s; a dropped body as Connection dropped after N of M bytes, with the part that was sent as its response.

The toolbar’s tools popover (the N tools on button in the bottom bar) has a switch for each scenario, and the button’s tooltip lists Failure Scenarios while one is on.

From an AI assistant or the command line

The MCP server’s failure_scenarios tool lists scenarios with each fault’s counts, lists the templates, creates a scenario from a template for a URL (and conditions) or from a full definition, updates, switches on and off, resets, deletes, and returns the log. For example, an assistant can create “Flaky API” for api.example.com/v1/orders*, switch it on, have you try the app, and read back what happened.

With cloakctl, for a test run:

cloakctl scenarios create --template "Flaky API" --url 'api.example.com/v1/orders*' --on
npm run test:e2e
cloakctl scenarios log "Flaky API"
cloakctl scenarios off "Flaky API"

--operation CreateOrder limits a template’s faults to one GraphQL operation. cloakctl scenarios alone lists every scenario with its faults’ counts. Commands exit with 1 when the app isn’t running or a scenario doesn’t exist.

Scenarios are saved with your rules: Tools › Export Rules… includes them, Import Rules… adds them, and cloakctl run --tools applies them in headless runs.

Test suites that use Toxiproxy can drive scenarios through the Toxiproxy-compatible API.

Where scenarios act

Faults are checked right after Block List and Rewrite’s request actions, against the request as the app sent it. Status, timeout, reset and a kept stale response answer for the server, so nothing after them runs. Delay waits before scripts, breakpoints and the server. Truncate, drop, trickle and stale (the first time) let the request reach the server and change how its response is delivered; those responses aren’t streamed to the app as they arrive.

Limits and safety

• Scenarios break requests for real: switch them off when you’re done. The bottom bar’s tools button shows when one is on.
• Counts, kept stale responses and the log live in the running proxy. They start again when the proxy restarts (for example after changing its port). The log keeps the last 2,000 events.
• After a drop, trickle, reset or timeout, the app’s connection is closed; it opens a new one for its next request.
• Requests over HTTP/2 can’t be reset with a TCP RST; their stream is closed instead.
• Replays from Repeat and Compose go through scenarios too. With no app connection to break, they record what the app would have seen.
